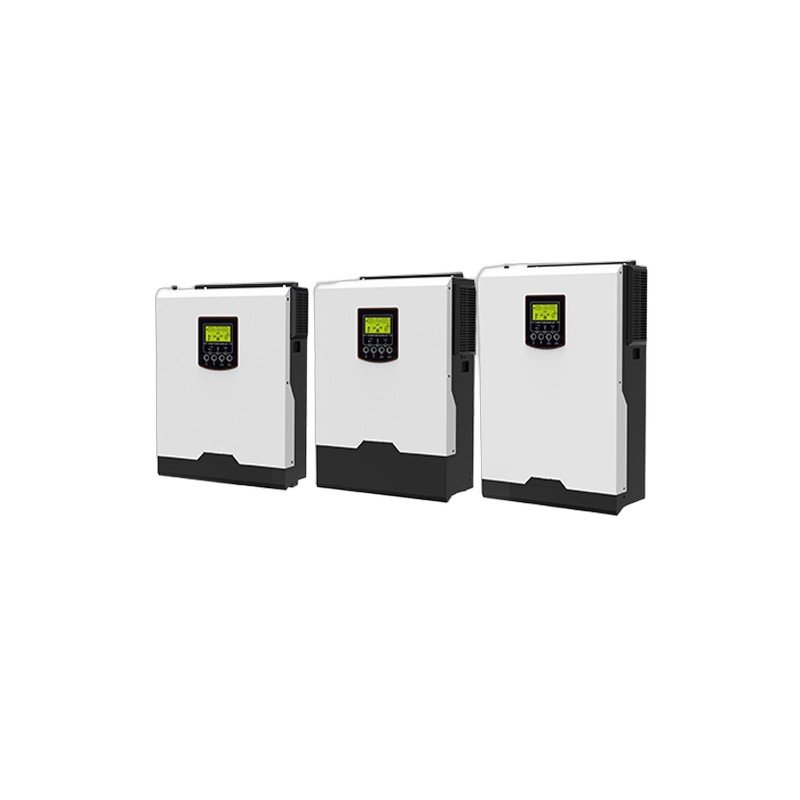

Voltronic Power AXPERT-VM-II-TWIN-3.6K
Axpert VM II TWIN 3.6K
Dhs. 1.00
Skip to product information
Voltronic Power AXPERT-VM-II-TWIN-3.6K
Dhs. 1.00
Voltronic Power AXPERT-VM-II-TWIN-3.6K, available in 2 ratings, Axpert VM II TWIN 3.6K to Axpert VM II TWIN 5.6K. Each rating is a different machine with its own figures. Pick the one that matches your system below, then select it in the options above.
True of every rating
- Keeps 93% of what the panels make
- Manufacturer Warranty manufacturer warranty
Choose your rating
Axpert VM II TWIN 3.6K
Model AXPERT-VM-II-TWIN-3.6K. Full specifications are listed below.
Axpert VM II TWIN 5.6K
Model AXPERT-VM-II-TWIN-5.6K. Full specifications are listed below.
Full specifications shared across all 2 ratings
| Rated Power (W) | 3600 |
| Selectable Voltage Range (V) | 170-280 VAC (For Personal Computers) |
| AC Voltage Regulation (%) | 230VAC ± 5% |
| Max Efficiency (%) | 93 |
| Max Charge Current (A) | 120 |
| Communication Interface | USB/RS-232 |
| Max PV Input Current (A) | 27 |
| MPPT Voltage Range (V) | 60-450 VDC |
| Max Solar Charge Current (A) | 120 |
| Max AC Charge Current (A) | 100 |
| Relative Humidity (%) | 5% to 95% |
| Operating Temperature (°C) | -10°C to 50°C |
| Dimensions (mm) | 322.6 x 420.3 x 107 |
| Misc Note | Dual Outputs: Yes |
