Felicity Solar 10 kW Three-Phase Low-Voltage Hybrid Solar Inverter
Felicity Solar 10 kW Three-Phase Low-Voltage Hybrid Solar Inverter

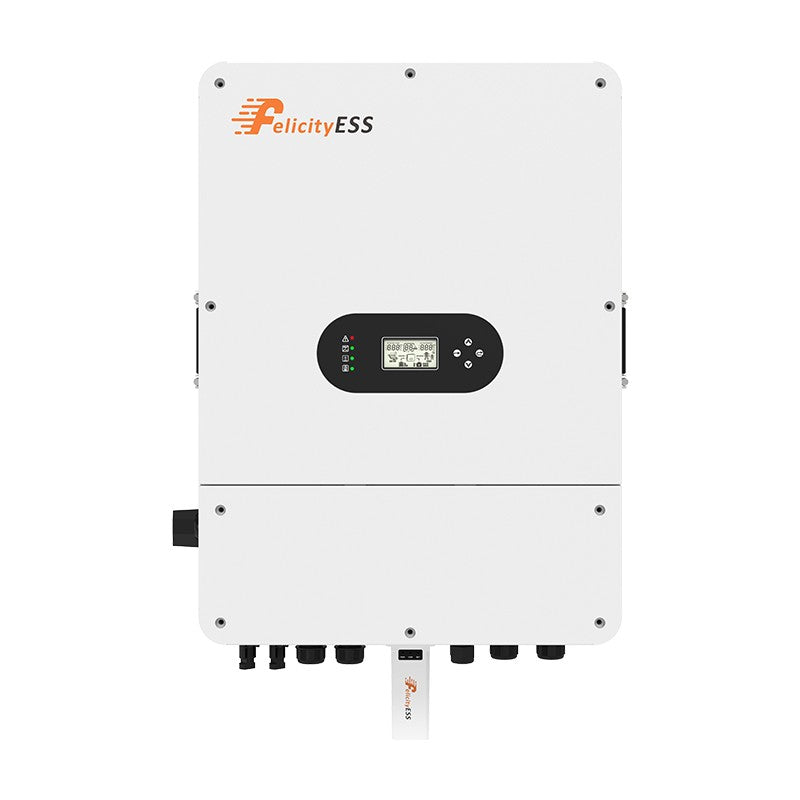

Introducing the Felicity Solar T-REX-10KLP3G01 Inverter, a robust solution designed to meet your energy needs. With its compact dimensions of 792 mm x 597 mm x 351 mm and a weight of 38.9 kg, this inverter is engineered for efficiency and reliability in a wide range of environmental conditions.
Key Features
- Multifunctional inverter with solar — charger and battery charger
- Comprehensive LCD display for — easy operation
- Supports battery charging, AC/solar — charging, and input voltage adjustment
Specifications
Electrical
| Battery Type | Li-Ion /Lead-acid |
| Battery Voltage Range | 40V~60V |
| Communication with BMS | RS485,CAN |
| Euro efficiency | 97.0% |
| Full Load DC Voltage Range | 450~850Vd.c |
| GFCI Protection | Integrated |
| Input Voltage Range | 184~264.5Vac |
| MPPT Range | 200~850Vd.c |
| Max. AC Current | 18A |
| Max. AC Output Power | 10000VA/10000W |
| Max. Charging Current | 200A |
| Max. DC Input Power | 13000W |
| Max. DC Input Voltage | 900V |
| Max. Discharging Current | 200A |
| Max. PV Isc | 18A/18A |
| Nominal voltage | 720V |
| Output shorted protection | Integrated |
| Power Factor | 0.8(leading)to0.8(lagging) |
| Rated AC Frequency | 50 /60 Hz (45~55Hz/55~65Hz) |
| Rated AC Output Power | 10000VA/10000W |
| Rated AC Voltage | L1/L2/L3/N/PE, 230/400Vac |
| Safety EMC / Standard | IEC/EN61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN62109-2 |
| Start-up Voltage | 180V |
| Max Charging / Discharging Current | 200/200 A |
| Max Charging / Discharging Power | 10000 W |
| Max Recommended PV Power | 13000 W |
| Max PV Voltage | 900 V |
| PV Voltage Range | 160-900 V |
| MPPT Voltage Range | 200-850 V |
| MPPT Voltage Range at Full Power | 450-850 V |
| Nominal PV Voltage | 720 V |
| Max Short Circuit Current | 18/18 A |
| Number of MPPT / Strings per MPPT | 2/1 |
| Nominal Grid Voltage | L1/L2/L3/N/PE, 230/400 Vac |
| Grid Voltage Range | 184-264.5 Vac |
| Nominal Grid Frequency | 50/60 Hz |
| Max Grid Input Current | 30 A |
| Max Charging Current (from Grid) | 200 A |
| Nominal AC Output Current | 14.5 A |
| Max AC Output Current | 18 A |
| Max Continuous AC Pass-Through | 30 A |
| Power Factor Adjustable | 0.8 leading to 0.8 lagging |
| THDi | <3 % |
| Backup AC Output Rated Power | 10000W / 10000VA |
| Backup AC Max Output Current | 30 A |
| Backup Rated Output Voltage | L1/L2/L3/N/PE, 230/400 Vac |
| Backup Rated Output Frequency | 50/60 Hz |
| Max Efficiency | 97.6 % |
| European Efficiency | 97.0 % |
| MPPT Efficiency | 99.9 % |
| Output Overload Protection | Built-in |
| Output Overvoltage Protection | Built-in |
| Output Short-Circuit Protection | Built-in |
| Anti-Islanding Protection | Built-in |
| Insulation Resistor Detection | Built-in |
| Communication | RS232/RS485 |
| BMS Communication | CAN/RS485 |
| Monitor Module | WiFi/GPRS |
| Display | LCD+LED |
Mechanical
| Installation Style | Wall-mounted |
| Package Dimension | 792*597*351 MM |
| Gross Weight | 47.1 kg |
| Package Dimensions | 792 x 597 x 351 mm |
| IP Rating | IP65 |
| Cooling | Smart Cooling |
Environmental
| Humidity | 0~95%(Nocondensation) |
| Operating Temperature Range | -25to60°C(>50°Cderating) |
| Relative Humidity | 0-100 % |
| Maximum Altitude | 2000 m |
| Grid Standards | VDE-AR-N 4105, G99/1, EN50549-1, CEI 0-21, AS 4777.2, NRS 097-2-1 |
| Safety Standards | IEC 62109-1/2, IEC 62040-1 |
| EMC | EN61000-6-1, EN61000-6-3 |
| Warranty | 10 Years |
FAQs
What are the main performance specifications of the T-REX-10KLP3G01 inverter?
The T-REX-10KLP3G01 inverter is designed for high efficiency and reliable performance. It supports a wide range of input voltages and offers robust power output suitable for various solar energy systems.
Is the T-REX-10KLP3G01 inverter compatible with all solar panels?
The T-REX-10KLP3G01 is compatible with most solar panels available on the market. However, it is recommended to check the voltage and current specifications of your solar panels to ensure optimal compatibility.
What are the physical specifications of the T-REX-10KLP3G01 inverter?
The inverter measures 792 mm in height, 597 mm in width, and 351 mm in depth. It has a net weight of 38.9 kg and a gross weight of 47.1 kg.
What are the installation requirements for the T-REX-10KLP3G01 inverter?
Installation requires a wire size of 4.0-6.0 mm² for connections, with a cable diameter of 7 mm. For larger connections, a wire size of 50 mm² and a cable diameter of 15 mm are needed.
