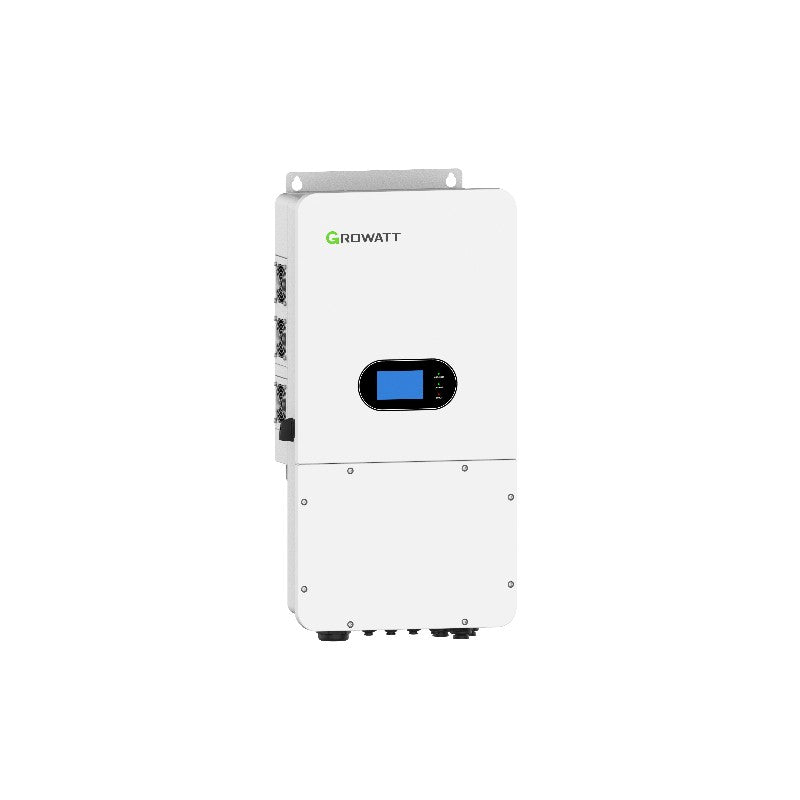

Growatt SPH 7500W BL-UP
Growatt SPH 7500W BL-UP
Growatt — the world's #1 residential solar inverter brand by Wood Mackenzie. The SPH 3000-6000TL BL-UP is a hybrid storage inverter (single or three-phase). Designed for PV+storage installations in UAE villas, Saudi compounds, and European homes with backup needs. Key features: ARK LV/HV battery compatible, backup port, ShinePhone app. 5- to 10-year warranty. Available in 17 regions across the Middle East, Europe, and Africa via Growatt MJS Solutions, the authorised distributor based in Dubai. Remote monitoring via the ShinePhone app and ShineServer cloud — view performance from anywhere, configure alerts, and manage multiple sites.
Key Features
- Smart load management via dry contact
- UPS function, 10ms transition
- Scalable system configuration
- VPP interface ready
- Remote smart O&M
Specifications
Electrical
| Max. recommended PV power (for module STC) | 7500W |
| Max. DC voltage | 550V |
| Start voltage | 120V |
| MPP voltage range/ Nominal Voltage | 120-550V/370V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 13.5A |
| Max. short-circuit current per MPP tracker | 16.9A |
| Max. AC output power | 3680W |
| Rated AC output apparent power | 3680VA |
| Nominal AC voltage (range) | 230V (180V-260V) |
| AC grid frequency (range) | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) |
| Rated output current | 16A |
| Adjustable power factor | 0.8leading...0.8lagging |
| THDi | <3% |
| AC grid connection type | Single phase |
| Battery voltage range | 42-59V |
| Max charging and discharging current | 75A |
| Continuous charging and discharging power | 3680W |
| Type of battery | Lithium / Lead-acid |
| Max. efficiency | 97.20% |
| European efficiency | 97% |
| MPPT efficiency | >99.5% |
| DC switch | Yes |
| DC reverse polarity protection | Yes |
| AC/DC surge protection | Yes |
| Battery reverse protection | Yes |
| AC short-circuit protection | Yes |
| Ground fault monitoring | Yes |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Residual-current monitoring unit | Yes |
| Insulation resistance monitoring | Yes |
Mechanical
| Dimensions (W / H / D) | 565/465/188mm |
| Weight | 27kg |
| Operating temperature range | -25°C to +60°C |
| Nighttime power consumption | <10W |
| Cooling | Natural |
| Protection degree | IP65 |
| Relative humidity | 0-100% |
| Altitude | 2000m |
FAQs
Is the Growatt SPH 3000-6000TL BL-UP approved for use in the UAE?
Yes — Growatt inverters are widely used in DEWA Shams Dubai, SEWA, FEWA, EtihadWE, and SEC Saudi Arabia installations. Verify the specific SKU on the latest DEWA Approved Equipment List before EPC submission. Growatt MJS Solutions can supply DEWA documentation on request.
What warranty comes with the Growatt SPH 3000-6000TL BL-UP, and is it valid in the Middle East?
5-Year Manufacturer Warranty, valid across all 17 regions we serve including UAE, KSA, Oman, Bahrain, Qatar, Kuwait, Egypt, and the wider Middle East/North Africa. Extended warranty options are available at the time of purchase. All warranty claims are processed locally through Growatt MJS Solutions in Dubai.
How do I monitor the Growatt SPH 3000-6000TL BL-UP remotely?
All Growatt inverters and batteries integrate with the ShinePhone mobile app and ShineServer cloud platform. Add a ShineWiFi-X dongle or use the built-in WiFi (depending on model) for real-time monitoring, alerts, and multi-site management. The app supports English, Arabic, and 20+ languages.
What batteries does the Growatt SPH 3000-6000TL BL-UP pair with?
SPH 3000-6000TL BL-UP is compatible with Growatt's LFP battery range — most commonly the ARK XH, ARK HV, or APX HV stack depending on model and topology. Battery sizing depends on your daily backup load; a typical UAE villa uses 10–20 kWh of usable storage. Contact Growatt MJS Solutions for a tailored sizing recommendation.
What's the lead time for the Growatt SPH 3000-6000TL BL-UP in Dubai?
In-stock units typically ship within 1–2 business days from our Dubai warehouse. For larger orders or specific configurations, lead times of 2–4 weeks may apply. Contact Growatt MJS Solutions on +971 4 255 0887 or sales@growatinverter.com for an exact quote.
How does the Growatt SPH 3000-6000TL BL-UP perform in UAE summer rooftop temperatures?
Growatt inverters are rated -25 to +60 °C ambient operation, but real-world derating begins around 45 °C. For UAE rooftops where temperatures can exceed 50 °C in summer, we recommend mounting in a shaded location with good airflow, and slightly oversizing PV-to-AC ratio to compensate for afternoon clipping. The IP65/IP66 rating handles dust and humidity.
