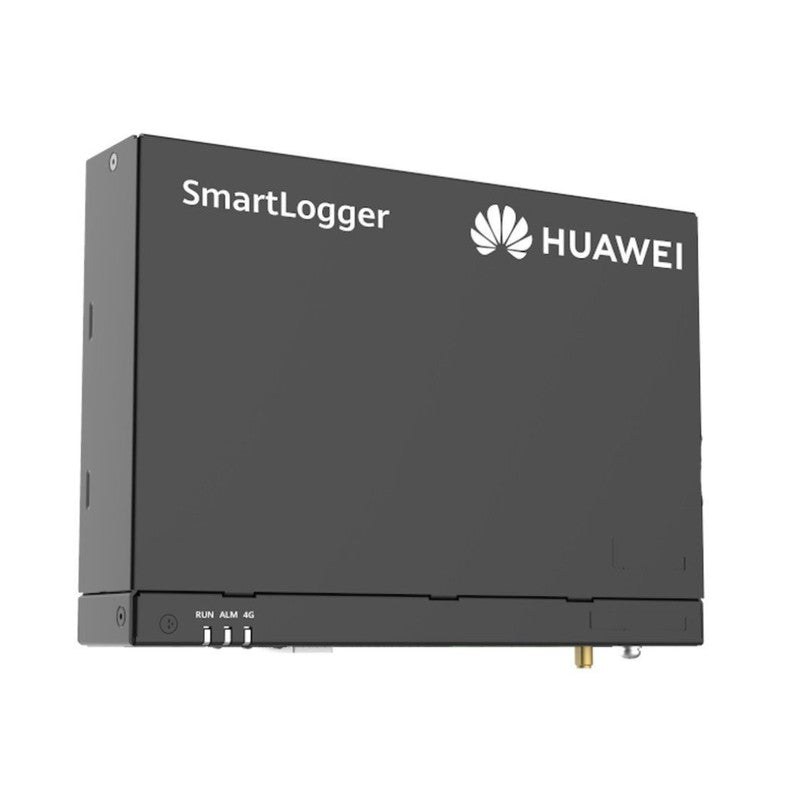

Huawei SmartLogger3000A
Huawei SmartLogger3000A
Huawei — supplied across 17 regions by Huawei MJS Solutions. The SmartLogger3000A is an centralized data logger. Designed for C&I and utility plant monitoring. Key features: supports up to 80 inverters. 5-year warranty. Available in 17 regions across the Middle East, Europe, and Africa via Huawei MJS Solutions, the authorised distributor based in Dubai.
Key Features
- Up to 80 Inverters
- WAN/LAN (10/100/1000 Mbps)
- 3x RS485 COM Ports
- 4G/3G/2G Networking (Optional)
- FusionSolar Cloud Integration
- DI/DO/AI Interfaces
Specifications
Electrical
| Max Inverters Supported | 80 |
| WAN Port | 10/100/1000 Mbps |
| LAN Port | 10/100/1000 Mbps |
| RS485 COM Ports | 3 |
| USB Port | USB 2.0 |
| Wireless | WLAN (commissioning), 4G/3G/2G (optional) |
| Digital Inputs (DI) | 4 |
| Digital Outputs (DO) | 2 |
| Analog Inputs (AI) | 4 |
| Operating Temperature | -40 °C ~ +60 °C |
| Humidity | 5%-95% RH (Non-Condensing) |
FAQs
Is the Huawei SmartLogger3000A approved for use in the UAE?
Yes — Huawei products are widely used in DEWA, SEWA, FEWA, EtihadWE, and SEC Saudi Arabia installations. Verify the specific SKU on the latest DEWA Approved Equipment List before EPC submission. Huawei MJS Solutions can supply DEWA documentation on request.
What warranty comes with the Huawei SmartLogger3000A, and is it valid in the Middle East?
5-year warranty, valid across all 17 regions we serve including UAE, KSA, Oman, Bahrain, Qatar, Kuwait, Egypt, and the wider Middle East/North Africa. Extended warranty options are available at the time of purchase. All warranty claims are processed locally through Huawei MJS Solutions in Dubai.
What's the lead time for the Huawei SmartLogger3000A in Dubai?
In-stock units typically ship within 1–2 business days from our Dubai warehouse. For larger orders or specific configurations, lead times of 2–4 weeks may apply. Contact Huawei MJS Solutions on +97142550887 or sales@huawei-solar.org for an exact quote.
Can I install the Huawei SmartLogger3000A on a three-phase commercial site?
Yes — SmartLogger3000A is designed for three-phase 400V grid connections common in UAE/KSA commercial buildings. It supports parallel installation for larger arrays, smart string monitoring, and integrates with EMS/SCADA via RS485/Ethernet.
How does the Huawei SmartLogger3000A perform in UAE summer rooftop temperatures?
Huawei inverters are rated -25 to +60 °C ambient operation, but real-world derating begins around 45 °C. For UAE rooftops where temperatures can exceed 50 °C in summer, we recommend mounting in a shaded location with good airflow, and slightly oversizing PV-to-AC ratio to compensate for afternoon clipping.
