11.8 kWh home battery, 230 A, for a house that runs through the night

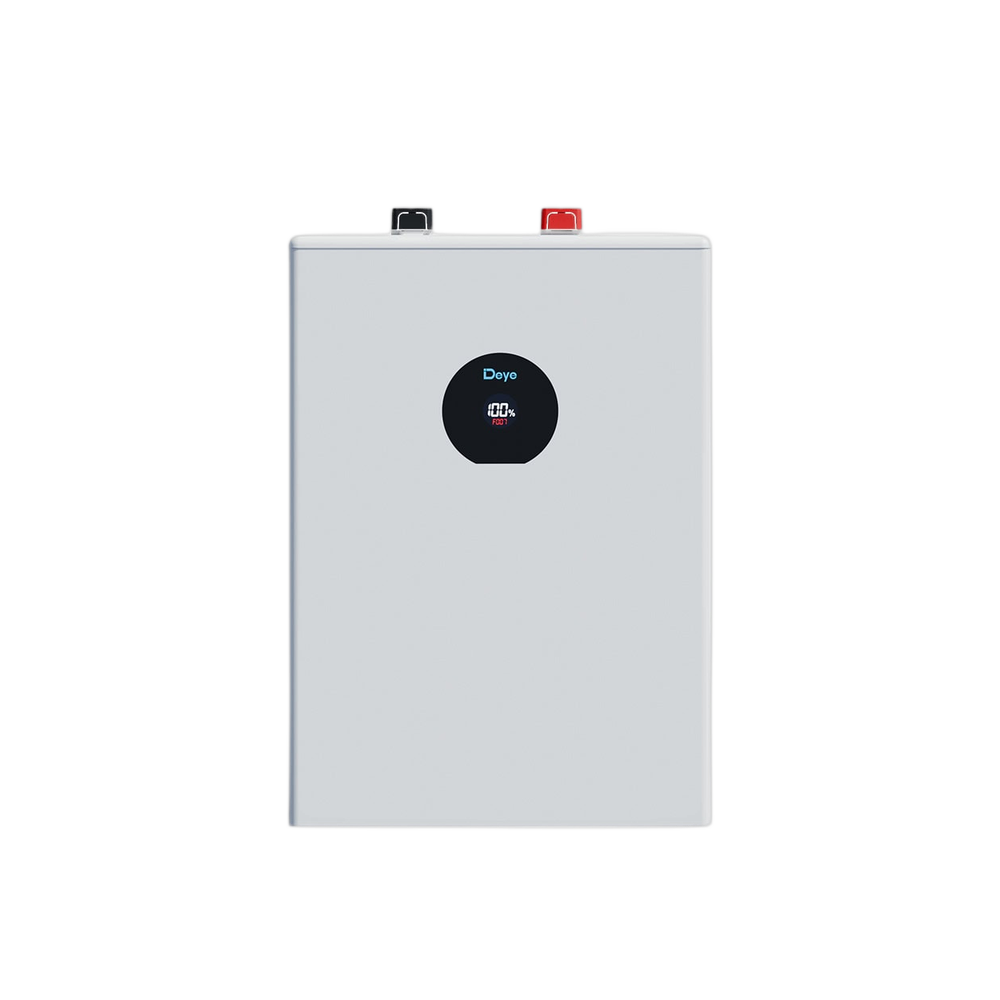

The SE-F12 is Deye's 11.8 kWh home battery, a 48V lithium iron phosphate unit that pairs with any hybrid inverter set up for a 51.2 V bank. It is the middle size in the SE-F family: larger than the 5.12 kWh wall units, smaller than the 16 kWh cabinet, and rated for 230 A continuous in both directions. It can go on a wall, on the floor, or stacked with more of the same.
One SE-F12 covers a normal evening in a family home, and up to 32 of them can run in parallel for 377.6 kWh where a site needs it. Monitoring is over Bluetooth to the phone app, with CAN 2.0 and RS485 to the inverter, and an LED with a buzzer on the unit itself for state of charge and faults. It charges from 0 to 55 °C and discharges down to -20 °C.
At a glance
| Nominal energy | 11.8 kWh (230 Ah) |
| Continuous current | 230 A |
| Largest parallel system | 377.6 kWh from 32 units |
| Weight | 84 kg |
Full specifications
| Energy Capacity (kWh) | 11.8 |
| Nominal Capacity (Ah) | 230 |
| Usable Energy (kWh) | 10.62 |
| Battery Type | LiFePO4 |
| Max Continuous Charge Discharge Current (A) | 230 |
| Communication Interface | CAN2.0, RS485, Bluetooth, APP |
| Cycle Life | 6000 |
| Status Indicator | LED(SOC, working, protecting) & Buzzer |
| Max Charge Discharge Current (A) | 230 |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 44.8~57.6 |
| Recommended DOD (%) | 90 |
| Peak Charge Discharge Current (A) | 280 (10 sec) |
| Parallel Units | 32 |
| Max System Capacity (kWh) | 377.6 |
| Installation | Wall-Mounted, Floor-Mounted,Stack-Mounted |
| IP Rating | IP21 |
| Max Altitude (m) | 3000 |
| Relative Humidity (%) | 0 ~ 95 |
| Storage Temperature Range (°C) | 0℃～35℃ |
| Operating Temperature (°C) | Charge: 0℃～55℃ |
| Discharging Temperature Range (°C) | -20 to 55 |
| Charging Temperature Range (°C) | 0 to 55 |
| Weight (kg) | 84 |
| Dimensions (mm) | 400 x 559 x 233 |
Model code: SE-F12
