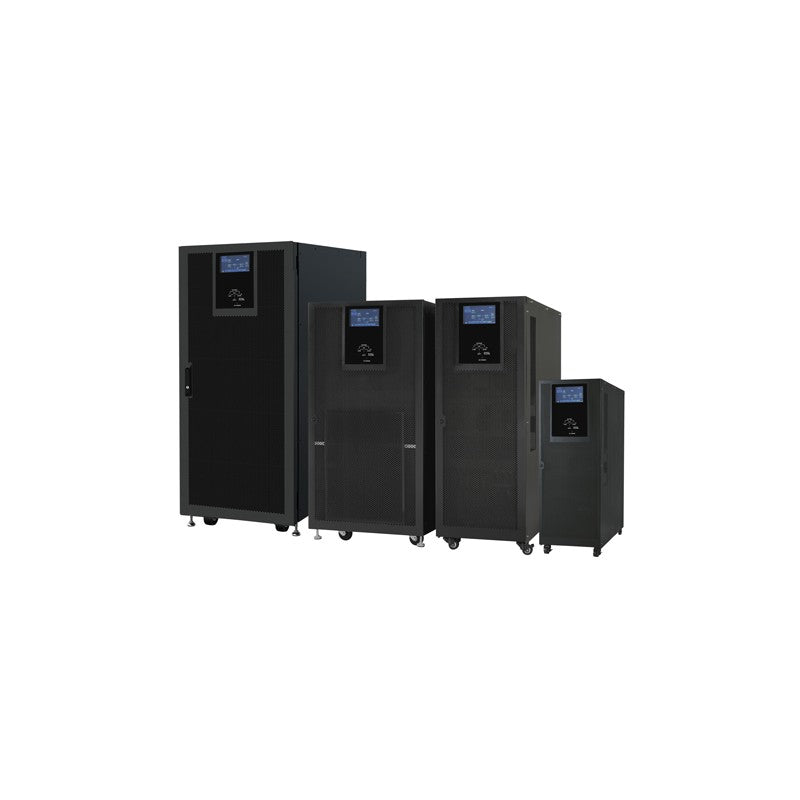

Voltronic Power +Power 30U-180HV
Voltronic Power +Power 30U-180HV
The +Power Modular UPS by Voltronic Power offers unparalleled reliability with its nominal voltage of 3 x 380VAC/400VAC/415VAC. Designed for both balanced and imbalanced loads, it ensures steady voltage regulation, making it a top choice for critical power applications. Ideal for data centers, telecommunications, and industrial applications where uninterrupted power is crucial.
Key Features
- High efficiency online double conversion — High efficiency online double conversion technology
- Unity output power factor
- Modular design lowers MTTR
- N+1 or N+X parallel redundancy — N+1 or N+X parallel redundancy for power guarantee
- Ease of installation and maintenance
- Flexible battery configuration adapts different — Flexible battery configuration adapts different applications
- Highly reliable operation with redundant — Highly reliable operation with redundant power supply in STS
- User-adjustable charging current
- High overload capability
- Graphic 5.7” LCD design for — Graphic 5.7” LCD design for easy management
- Optional 10" touch LCD panel
Specifications
Electrical
| Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3PH+N) |
| Voltage Range | 305 - 478 VAC @ 100% load; 208 - 478VAC @ 70% load |
| Nominal Frequency | 50/60Hz (Auto Sensing) |
| Frequency Range | 40Hz – 70Hz |
| Power Factor | > 0.99 @ 100% Load, >0.98 @ 50% Load |
| Harmonic Distortion (THDi) | < 3% @ 100% load |
| Voltage Regulation (Steady state) | ≤ ± 1% Typical (balanced load); ≤ ± 2% Typical (imbalanced load) |
| Frequency Range (Synchronized) | 46Hz – 54Hz or 56Hz – 64Hz |
| Overload Capability | 1 hour for 110%, 10 mins for 125%, 1 min for 150%, 200ms for >150% |
| Harmonic Distortion | ≤ 2% THD (Linear Load); ≤ 4% THD (Non-linear Load) |
| Efficiency | Up to 94.5% |
| Maximum Voltage | +/- 240V (12V x 40 pcs) |
| Minimum Voltage | +/- 192V (12V x 32 pcs) |
| Float Charging Voltage | 2.25V / Cell |
| Boost Charging Voltage | 2.35V / Cell |
| Maximum Charging Current (Per Power Module) | 6A for 20KW power module |
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Safety | IEC/EN 60950-1; IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 Category C3 |
Mechanical
| Cabinet Dimension (D x W x H) mm | 1100 x 600 x 1475 |
| Net Weight (kg) | 437.5 or 434.5 |
| Weight | 437.5 or 434.5 |
Environmental
| Operating Temperature | 0 – 40°C |
| Relative Humidity | 0 – 95% non-condensing |
| Altitude | <1000m for Nominal power |
| IP Protection | IP 20 |
Certifications: IEC/EN 60950-1, IEC/EN 62040-1, IEC/EN 62040-2 Category C3
FAQs
What are the main performance specifications of the +Power Modular UPS?
The +Power Modular UPS offers a high efficiency of up to 94.5% and supports a nominal voltage of 3 x 380VAC/400VAC/415VAC (3PH+N). It maintains a power factor greater than 0.99 at full load and harmonic distortion of less than 3% at 100% load.
Is the +Power Modular UPS compatible with different battery types and solar panels?
Yes, the UPS is compatible with a nominal battery voltage of +/- 216V, consisting of 12V x 36 pcs, and can support a maximum voltage of +/- 240V with 12V x 40 pcs. It can be integrated with solar panels and the grid for enhanced power solutions.
What are the physical specifications of the +Power Modular UPS?
The physical dimensions and weight of the +Power Modular UPS can vary based on the specific configuration and modules used. Please refer to the detailed product manual for precise measurements and weight.
What are the installation requirements for the +Power Modular UPS?
Installation requires a stable environment with appropriate ventilation. The UPS should be installed by a certified technician to ensure compliance with safety standards and optimal performance.
What warranty is offered with the +Power Modular UPS?
Voltronic Power offers a standard warranty period for the +Power Modular UPS, which typically covers parts and labor. Specific warranty terms can vary, so it's advisable to consult the purchase agreement or contact customer support for detailed information.
What certifications and standards does the +Power Modular UPS adhere to?
The +Power Modular UPS is certified under IEC/EN 60950-1, IEC/EN 62040-1, and IEC/EN 62040-2 Category C3, ensuring compliance with international safety and performance standards.
What are the operating conditions for the +Power Modular UPS?
The UPS is designed to operate efficiently in a temperature range that supports optimal performance. It is important to maintain humidity levels within recommended limits to ensure reliability and longevity.
What are the key features and benefits of the +Power Modular UPS?
Key features include high efficiency, robust overload capability, and low harmonic distortion. These benefits ensure reliable power supply, reduced energy costs, and enhanced protection for connected equipment.
