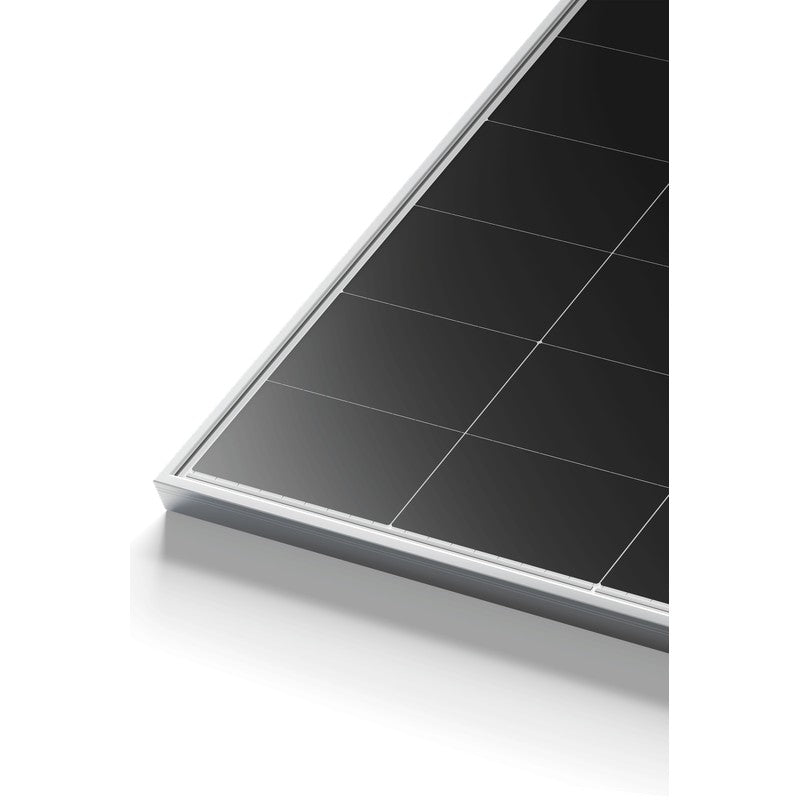

LONGi Hi-MO 9 Ice-Shield 630–670 W Monocrystalline Solar Panel
LONGi Hi-MO 9 Ice-Shield 630–670 W Monocrystalline Solar Panel
LONGi Hi-MO 9 Ice-Shield 630–670 W Monocrystalline Solar Panel, available in 9 ratings, 630 W to 670 W. Each rating is a different machine with its own figures. Pick the one that matches your system below, then select it in the options above.
True of every rating
- 12 Years Product, 30 Years Performance manufacturer warranty
- Certified to IEC 61215, IEC 61730, UL 61730, ISO9001:2015 and 3 more
Choose your rating
630 W
Model LR8-66HYD-630W-ICE-SHIELD. Full specifications are listed below.
635 W
Model LR8-66HYD-635W-ICE-SHIELD. Full specifications are listed below.
640 W
Model LR8-66HYD-640W-ICE-SHIELD. Full specifications are listed below.
645 W
Model LR8-66HYD-645W-ICE-SHIELD. Full specifications are listed below.
650 W
Model LR8-66HYD-650W-ICE-SHIELD. Full specifications are listed below.
655 W
Model LR8-66HYD-655W-ICE-SHIELD. Full specifications are listed below.
660 W
Model LR8-66HYD-660W-ICE-SHIELD. Full specifications are listed below.
665 W
Model LR8-66HYD-665W-ICE-SHIELD. Full specifications are listed below.
670 W
Model LR8-66HYD-670W-ICE-SHIELD. Full specifications are listed below.
Full specifications shared across all 9 ratings
| Dimensions (mm) | 2382×1134×30mm |
| Weight (kg) | 41.6 |
| Frame Material | Anodized aluminum alloy frame |
| Glass | Dual glass, 3.2mm coated tempered glass+2mm heat strengthened glass |
| Temperature Coeff Isc Pct (°C) | 0.05 |
| Temperature Coeff Voc Pct (°C) | -0.2 |
| Temperature Coeff Pmax Pct (°C) | -0.26 |
| Front Static Load Pa | 5400 |
| Rear Static Load Pa | 5400 |
| Hailstone Test | 45mm Hailstone at the speed of 30.7m/s |
| Operating Temperature (°C) | -40°C to +85°C |
| Power Output Tolerance (%) | 0~+3% |
| Max System Voltage (V) | 1500 |
| Max Series Fuse Rating (A) | 35 |
| Noct (°C) | 45 |
| Protection Class | Class II |
| Bifaciality (%) | 75 |
| Fire Rating | UL type 29, IEC Class C |
