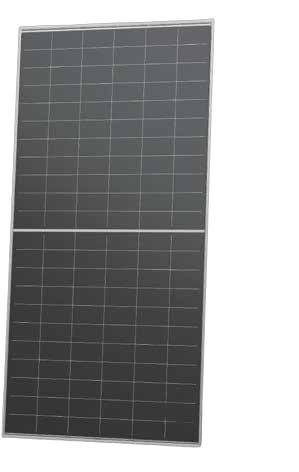

Jinko Solar N-Type Bifacial 620 W
Jinko Solar N-Type Bifacial 620 W
A large-format dual-glass module on N-type TOPCon cells, built for commercial rooftops, carports and ground-mounted arrays where light also reaches under the panel. The glazed back face turns that reflected light into extra output — roughly a tenth more on a bright surface — without adding a single row. Two panes of glass and an anodised frame take heavy snow and storm uplift, and Jinko covers the product for 12 years and the output for 30.
Key Features
- Generates from both faces — Light reflected off the roof or ground reaches the glazed back and adds output, with the rear side responding at about 80% of the front.
- Glass instead of a backsheet — Two 2 mm panes seal the cells, so damp, sand and UV have no soft layer to attack.
- Certified for hard weather — Tested to 5400 Pa of load on the front and 2400 Pa on the rear, with salt-mist, ammonia, sand and anti-PID certification.
- Keeps its power in the heat — Output slips just 0.29% per degree above 25 °C, and the module is rated to run from -40 °C to +70 °C.
Specifications
Electrical
| Maximum Power Voltage - Vmp | 40.74 V |
| Maximum Power Current - Imp | 15.22 A |
| Short-circuit Current - Isc | 16.08 A |
| Open-circuit Voltage - Voc | 49.08 V |
| Module Efficiency STC | 22.95 % |
Mechanical
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 132 (66×2) |
| Dimensions | 2382×1134×30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Connector Type | JK03M/MC4/Others* |
| Pallet Dimensions | 2396X1110×1251 mm |
| Packing Detail | 36 pcs/pallets, 72 pcs/stack, |
| Maximum Power-Pmax | 620 |
| Power Tolerence | 0~+3 |
| Operating Temperature | -40 °C +70 °C |
| Maximum Series Fuse Rating | 35 A |
| Bifaciality Coefficents | qVoc: 98±5%, qplsc: 80±5%, Pmax: 80±5% |
Environmental
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Maximum System Voltage | 1500 VDC (IEC) |
Certifications: IEC, TUV, CE
FAQs
How much extra does the bifacial back face really give me?
It depends on what sits under the array. Jinko rates the rear at 80% ±5% of the front, and at the datasheet's bifacial reference conditions (135 W/m² of rear irradiance) output rises by roughly 10%. A light roof membrane, gravel or concrete puts you near the top of that range; grass or dark asphalt gives less.
What warranty comes with it?
12 years on the product itself and 30 years on power output. Jinko allows 1% loss in the first year and 0.40% a year after that, which still leaves at least 87.4% of the original output in year 30.
What size and weight should I plan the mounting around?
Each module measures 2382 × 1134 × 30 mm and weighs 32.4 kg — a two-person lift on a large-format frame, so check your rail spacing and that the roof or tracker takes the span. They ship 36 to a pallet and 720 in a 40 ft high-cube container.
