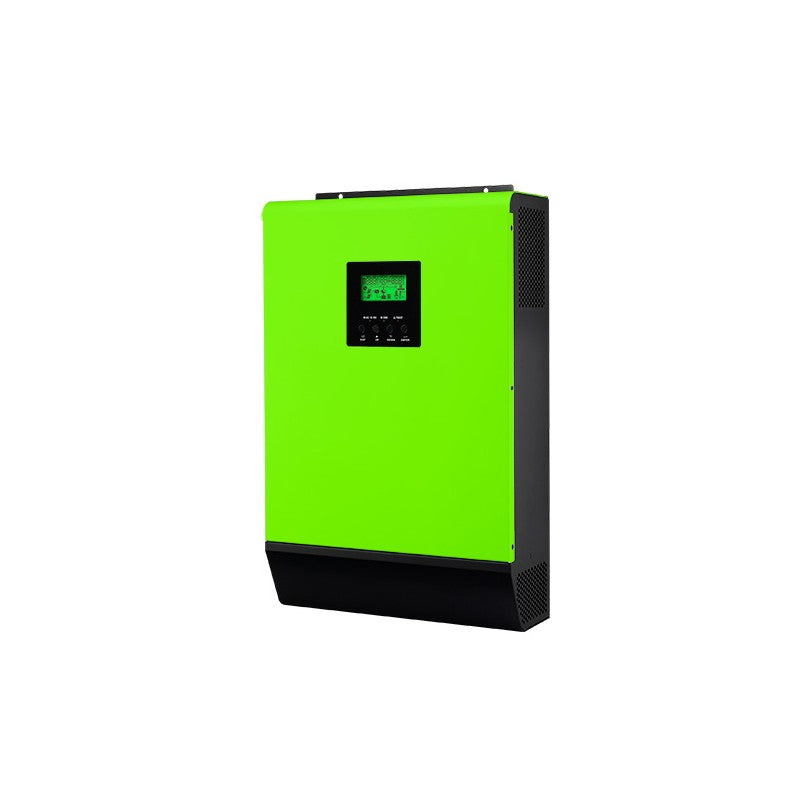

Voltronic Power InfiniSolar WP TWIN HMI 15kw
Voltronic Power InfiniSolar WP TWIN HMI 15kw
The InfiniSolar WP TWIN HMI by Voltronic Power is a high-performance inverter designed to maximize energy efficiency. With a maximum DC power of 22500 W and a wide MPP voltage range, it ensures optimal energy conversion for various applications. Ideal for residential and commercial solar installations, the InfiniSolar WP TWIN HMI provides reliable power conversion and supports grid-tied applications.
Key Features
- IP66 certified enclosure
- User-friendly HMI LCD design for — User-friendly HMI LCD design for easy configuration
- Built-in WiFi for mobile monitoring
- 150% unbalanced load support
- 26A maximum PV input current
- Dual outputs for smart load — Dual outputs for smart load management
- User-adjustable charging current
- Reserved communication port for BMS — Reserved communication port for BMS (RS485)
- Parallel operation up to 6 — Parallel operation up to 6 units
Specifications
Electrical
| Maximum Discharge Cuurent Imax (8/20s) kA | 40 |
| Nominal Discharge Current In (8/20s) KA | 20 |
| Response Time (ns) | <25 |
| Voltage protection Level Up (VDC) KV | ≤2.0 |
| Protection | 0~1000 m** |
| Efficiency | >96% |
| Efficiency (DC to AC) | 91% |
| European Efficiency@ Vnominal | >95% |
| Maximum DC Power | 22500 W |
| Maximum DC Voltage | 1000 VDC |
| MPP Voltage Range | 350 VDC ~ 950 VDC |
| Nominal Output Voltage | 400 VAC (P-P) |
| Output Voltage Range | 184 - 265 VAC per phase |
| Nominal Output Current | 21.7 A per phase |
| Power Factor range | 0.9 lag – 0.9 lead |
| Maximum Conversion Efficiency (DC/AC) | >96% |
| European Efficiency@ Nominal | >95% |
| Battery Voltage Range | 40 ~60 VDC |
| Maximum Charging Current | 300 A |
| Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
| Intelligent Slot | Optional for SNMP and Modbus cards |
| Safety | IEC 62109, IEC 62116, IEC 61727, IEC 61683 |
| Grid Connection Standard | NRS097-2-1:2017, VDE-AR-N4105, G99 |
Mechanical
| Dimension, D x W x H (mm) | 255 x 660 x 750 |
| Net Weight (kgs) | 78 |
Environmental
| Humidity | 0 ~ 100% RH (Non-condensing) |
| Operating Temperature | -25 to 60°C; > 45°C power derating |
| Altitude | 0 ~ 1000 m |
Certifications: IEC 62109, IEC 62116, IEC 61727, IEC 61683, NRS097-2-1:2017, VDE-AR-N4105, G99
FAQs
What are the main performance specifications of the InfiniSolar WP TWIN HMI?
The InfiniSolar WP TWIN HMI inverter offers a maximum DC power of 22500 W and a maximum DC voltage of 1000 VDC. It boasts a high conversion efficiency of over 96% and a European efficiency of over 95%.
Is the InfiniSolar WP TWIN HMI compatible with different battery types and solar panels?
Yes, the inverter supports a battery voltage range of 40 to 60 VDC and can handle a maximum charging current of 300 A. It is compatible with solar panels that fit within its MPP voltage range of 350 VDC to 950 VDC.
What are the physical specifications of the InfiniSolar WP TWIN HMI?
The inverter measures 255 x 660 x 750 mm and weighs 78 kg. It is designed for robust performance, although specific IP ratings are not mentioned.
What are the installation requirements for the InfiniSolar WP TWIN HMI?
Installation should be performed by a qualified technician, ensuring all electrical connections meet local regulations. Adequate space for ventilation and access to the inverter should be considered.
What warranty is provided with the InfiniSolar WP TWIN HMI?
Voltronic Power typically offers a standard warranty period for their inverters, but specific terms should be confirmed with the supplier or retailer.
What certifications and standards does the InfiniSolar WP TWIN HMI comply with?
The inverter is certified under several international standards, including IEC 62109, IEC 62116, IEC 61727, IEC 61683, NRS097-2-1:2017, VDE-AR-N4105, and G99.
What are the operating conditions for the InfiniSolar WP TWIN HMI?
The inverter is designed to operate efficiently under a range of environmental conditions, though specific temperature and humidity ranges are not detailed in the specifications.
What are the key features and benefits of the InfiniSolar WP TWIN HMI?
Key features include dual MPP trackers for optimized solar energy capture, a high power factor range from 0.9 lag to 0.9 lead, and robust certification for grid compliance, making it a versatile choice for various installations.
