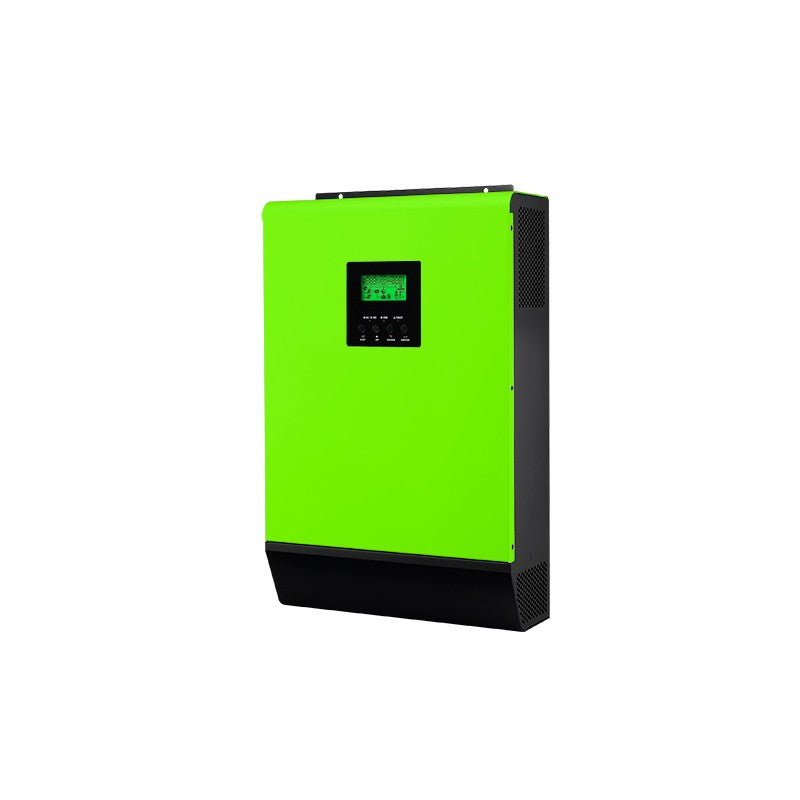

Voltronic Power InfiniSolar WP II 30kw
Voltronic Power InfiniSolar WP II 30kw
Introducing the InfiniSolar WP II series by Voltronic Power, available in 30kw and 50kw models. Engineered for high efficiency, this inverter supports a maximum PV input power of 48000 W and operates within a DC voltage range of 300 VDC to 1000 VDC, making it ideal for robust solar power systems. The InfiniSolar WP II series is perfect for commercial and industrial solar installations, providing reliable power conversion and grid support.
Key Features
- IP65 waterproof and dustproof design
- Wide battery input range 200~900 — Wide battery input range 200~900 VDC
- 200A AC passthrough capability only — 200A AC passthrough capability only for 50kw
- Parallel operation up to 4 — Parallel operation up to 4 units with common battery
- Built-in WiFi for mobile monitoring — Built-in WiFi for mobile monitoring (APP is available)
- Two independent AC power sources — Two independent AC power sources connected and switched automatically
- User-adjustable charging current up to — User-adjustable charging current up to 50A or 100A based on model
- User-friendly HMI LCD design and — User-friendly HMI LCD design and easy configuration
- Built-in communication port for BMS — Built-in communication port for BMS (CAN and RS485)
Specifications
Electrical
| Efficiency (DC to AC) | 97% |
| Maximum PV Input Power | 48000 W |
| Nominal DC Voltage / DC Voltage Range | 720 VDC / 300 VDC ~ 1000 VDC |
| Start-up Voltage / Initial Feeding Voltage | 300 VDC / 350 VDC |
| MPP Voltage Range | 350 VDC ~ 900 VDC |
| Number of MPP Trackers / Maximum Input Current | 3 / 36A for each / 4 |
| Number of Strings Per MPP Tracker | 2 |
| Nominal Output Voltage | 230 VAC (P-N) |
| Output Voltage Range | 184 - 265 VAC per phase |
| Output Frequency Range | 47.5 - 51.5 Hz or 59.3 - 60.5 Hz |
| Power Factor | 0.9 lag to 0.9 lead |
| Maximum Conversion Efficiency (DC/AC) | 96.5% / 96% |
| European Efficiency@ Vnominal | 96% |
| Battery Voltage Range | 200 ~ 900 VDC |
| Maximum Charging/Discharging Current | 50 A / 100 A |
| Communication Port | RS-232, USB, dry contact, RS-485, CAN, Wi-Fi |
| Intelligent Slot | Optional SNMP or MODBUS |
| EMI/Safety | IEC 61000, EN 62920, EN 62477, EN62619 |
| Grid Connection Standard | IEC 61683, IEC 61727, IEC 62116, NRS097-2-1, IEC 61683, IEC 61727, IEC 62116 |
Mechanical
| Dimension, D x W x H (mm) | 290 x 580 x 900 |
| Net Weight (kgs) | 85 |
Environmental
| Humidity | 0 ~ 100% RH |
| Operating Temperature | -20°C to 60°C (>45°C De-rating) |
| Altitude | 0 ~ 1000 m* |
Certifications: IEC 61000, EN 62920, EN 62477, EN62619, IEC 61683, IEC 61727, IEC 62116, NRS097-2-1
FAQs
What are the main performance specifications of the InfiniSolar WP II 30kw, 50kw inverter?
The InfiniSolar WP II inverter offers a maximum conversion efficiency of 96.5% and a European efficiency of 96%. It supports a maximum PV input power of 48000 W and operates with a nominal DC voltage of 720 VDC.
Is the InfiniSolar WP II inverter compatible with different battery types and solar panels?
Yes, the inverter is compatible with a wide range of battery voltages from 200 to 900 VDC and supports various solar panel configurations with its three MPP trackers.
What are the physical dimensions and weight of the InfiniSolar WP II inverter?
The inverter measures 290 x 580 x 900 mm. The weight is not specified in the provided data, but it is designed for robust installation.
What are the installation requirements for the InfiniSolar WP II inverter?
Installation should be performed by a qualified technician, ensuring proper ventilation and adherence to local electrical codes. The inverter's IP rating is not specified, so it should be installed in a protected environment.
What warranty is provided with the InfiniSolar WP II inverter?
Voltronic Power typically offers a standard warranty for their products, but specific warranty terms for the InfiniSolar WP II should be confirmed with the retailer or distributor.
What certifications and standards does the InfiniSolar WP II inverter comply with?
The inverter complies with several international standards, including IEC 61000, EN 62920, EN 62477, EN62619, IEC 61683, IEC 61727, IEC 62116, and NRS097-2-1.
What are the operating conditions for the InfiniSolar WP II inverter?
The inverter is designed to operate efficiently within a wide temperature range, but specific temperature and humidity limits are not provided in the data.
What are the key features and benefits of the InfiniSolar WP II inverter?
Key features include high efficiency, multiple MPP trackers for optimal solar energy harvesting, and compatibility with a wide range of battery voltages, making it versatile for various solar installations.
