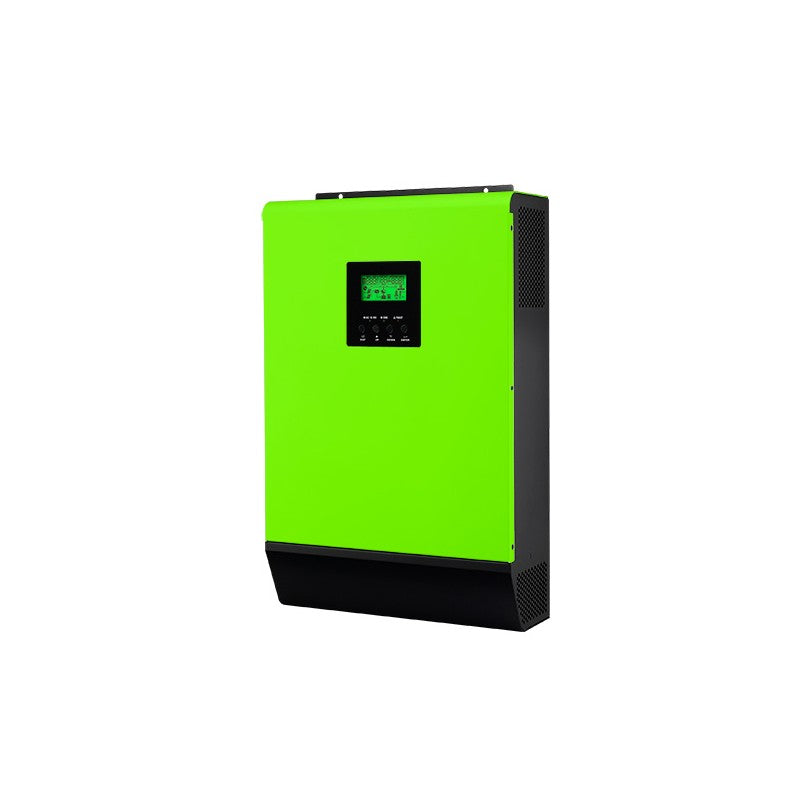

Voltronic Power InfiniSolar WP Elite
Voltronic Power InfiniSolar WP Elite
The InfiniSolar WP Elite by Voltronic Power is a high-performance inverter designed to maximize solar energy efficiency. With a maximum PV input power of 12000W and dual MPP trackers, it ensures optimal power conversion and reliability. Ideal for residential and commercial solar installations, the InfiniSolar WP Elite supports a wide range of applications, ensuring consistent and efficient energy supply.
Key Features
- IP66 certified enclosure
- User-friendly HMI LCD design and — User-friendly HMI LCD design and easy configuration
- Supports energy storage from generator
- Dual inputs and dual outputs — Dual inputs and dual outputs for smart energy management
- Built-in WiFi with APP for — Built-in WiFi with APP for mobile monitoring
- 150% unbalanced load support
- User-adjustable charging current and voltage
- Reserved communication port for BMS — Reserved communication port for BMS (RS485)
- Parallel operation up to 6 — Parallel operation up to 6 units
Specifications
Electrical
| Maximum Discharge Cuurent Imax (8/20s) kA | 40 |
| Nominal Discharge Current In (8/20s) KA | 20 |
| Response Time (ns) | <25 |
| Voltage protection Level Up (VDC) KV | ≤2.0 |
| Maximum PV Input Power | 12000W / 15000W / 18000W / 24000W |
| MPP Voltage Range | 400 VDC - 850 VDC / 420 VDC - 850 VDC |
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 184 - 265 VAC* per phase |
| Nominal Output Current | 11.6 A per phase / 14.5 A per phase / 17.4 A per phase / 21.7 A per phase |
| Power Factor Range | 0.9 lag - 0.9 lead |
| Maximum Conversion Efficiency (DC/AC) | >96% |
| European Efficiency@Nominal | >95% |
| Battery Voltage Range | 40 - 60 VDC |
| Maximum Charging Current | 160 A / 200 A / 240 A / 280 A |
| Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
| Intelligent Slot | Optional for SNMP and Modbus cards |
| Safety | IEC 62116, IEC 61727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019, IEC 61000-3-11:2019, EN 61000-3-12:2011 |
| Grid Connection Standard | EN 50549-1, VDE-AR-N-4105 |
Mechanical
| Dimension, D x W x H (mm) | 247 x 500 x 650 / 247 x 504.4 x 714.4 |
| Net Weight (kgs) | 50 / 54 / 59 |
| Weight | 50 / 54 / 59 |
Environmental
| Humidity | 0 - 100% RH (Non-condensing) |
| Operating Temperature | -25 to 50°C, > 45°C power derating |
| Altitude | 0 - 1000 m** |
Certifications: IEC 62116, IEC 61727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019, IEC 61000-3-11:2019, EN 61000-3-12:2011, EN 50549-1, VDE-AR-N-4105
FAQs
What are the main performance specifications of the InfiniSolar WP Elite inverter?
The InfiniSolar WP Elite inverter offers a maximum PV input power of 12000W and operates within an MPP voltage range of 400 VDC to 850 VDC. It boasts a maximum conversion efficiency of over 96% and a European efficiency of over 95%.
Is the InfiniSolar WP Elite compatible with all battery types and solar panels?
The inverter supports a battery voltage range of 40 - 60 VDC and is compatible with most solar panels that fall within its MPP voltage range. It is designed to integrate seamlessly with various grid systems.
What are the physical specifications of the InfiniSolar WP Elite?
The inverter measures 247 x 500 x 650 mm and weighs 50 kg. It is built to be robust and compact, although the IP rating is not specified in the provided details.
What are the installation requirements for the InfiniSolar WP Elite?
Installation should be performed by a qualified technician, ensuring proper ventilation and adherence to local electrical codes. The inverter's communication ports, including RS-232, RS-485, USB, CAN, and Wi-Fi, should be properly configured.
What warranty is offered with the InfiniSolar WP Elite?
Warranty details are not specified in the provided information. It is recommended to contact Voltronic Power or the distributor for specific warranty terms.
What certifications does the InfiniSolar WP Elite have?
The inverter is certified under several standards, including IEC 62116, IEC 61727, IEC 61683, IEC 62109, and others, ensuring compliance with international safety and performance standards.
What are the operating conditions for the InfiniSolar WP Elite?
The inverter is designed to operate efficiently in a range of environmental conditions, although specific temperature and humidity ranges are not detailed in the provided specifications.
What are the key features and benefits of the InfiniSolar WP Elite?
Key features include dual MPP trackers, a wide power factor range from 0.9 lag to 0.9 lead, and multiple communication options. These features enhance flexibility and efficiency in solar power management.
