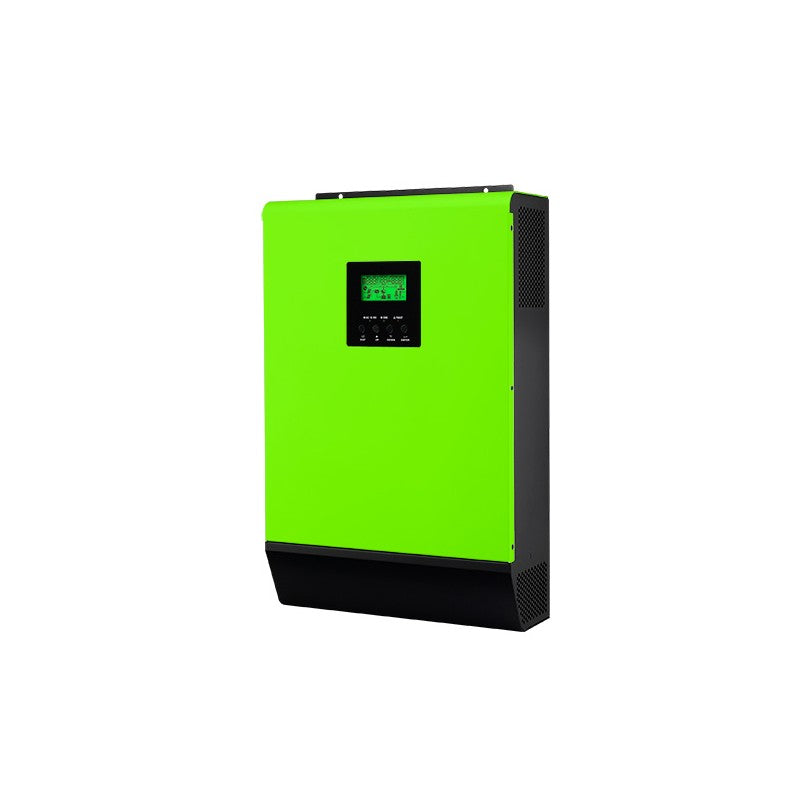

Voltronic Power InfiniSolar V II TWIN 6kw
Voltronic Power InfiniSolar V II TWIN 6kw
The InfiniSolar V II TWIN 6kw by Voltronic Power is a cutting-edge inverter designed for optimal performance and efficiency. With a nominal DC voltage of 360 VDC and a flexible output voltage range, it is ideal for various energy solutions. Perfect for residential and commercial solar power systems, the InfiniSolar V II TWIN 6kw ensures reliable energy conversion and distribution.
Key Features
- Maximum PV input current 27A
- Dual outputs for smart load — Dual outputs for smart load management
- Programmable supply priority for PV, — Programmable supply priority for PV, Battery or Grid
- User-adjustable charging current and voltage
- Programmable multiple operation modes: Grid-tie, — Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Monitoring software for real-time status — Monitoring software for real-time status display and control
- Parallel operation up to 9 — Parallel operation up to 9 units
Specifications
Electrical
| AC Start-up Voltage / Auto Restart Voltage | 90-280 VAC or 170-280 VAC |
| Maximum PV Input Power | 7000W |
| Acceptable Input Voltage Range | 90-280 VAC or 170 - 280 VAC |
| Efficiency (DC to AC) | 93% |
| Maximum Charging Power | 6000W |
| Parallel Function | Yes, 9 units |
| Phase | 1-phase in 1-phase out |
| Rated Output Power | 6000W |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 130VDC / 150 VDC |
| MPP Voltage Range | 120 VDC - 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 27A |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120 A |
| Maximum AC Charging Current | 120 A |
| Maximum Charging Current | 120 A |
| Communication Port | USB or RS-232/Dry Contact |
Mechanical
| Dimension, D x W x H (mm) | 120 x 295 x 468 |
| Net Weight (kgs) | 12 |
Environmental
| Humidity | 0 – 90%, RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
FAQs
What is the maximum conversion efficiency of the InfiniSolar V II TWIN 6kw?
The maximum conversion efficiency of the InfiniSolar V II TWIN 6kw is 95%, ensuring optimal energy conversion from DC to AC.
Is the InfiniSolar V II TWIN 6kw compatible with all types of batteries?
The inverter is designed to work with a nominal DC voltage of 48 VDC, making it compatible with most standard battery systems that match this specification.
What are the physical dimensions and weight of the InfiniSolar V II TWIN 6kw?
The specific dimensions and weight are not provided in the key specifications, but it is designed for robust performance and easy installation.
What are the installation requirements for the InfiniSolar V II TWIN 6kw?
Installation requires adherence to the nominal DC and AC voltage specifications, and it should be installed in a location with 0-90% non-condensing humidity.
What warranty is offered with the InfiniSolar V II TWIN 6kw?
Voltronic Power typically offers a standard warranty on their products, but specific terms should be confirmed with the retailer or distributor.
What certifications does the InfiniSolar V II TWIN 6kw have?
The inverter comes with standard certifications, ensuring compliance with industry standards for safety and performance.
What are the operating conditions for the InfiniSolar V II TWIN 6kw?
The inverter operates effectively in environments with 0-90% relative humidity, provided there is no condensation.
What are the key features and benefits of the InfiniSolar V II TWIN 6kw?
Key features include a high power factor of >0.99, a wide MPP voltage range of 120 VDC - 430 VDC, and a maximum solar charging current of 120 A, providing efficient and versatile energy management.
