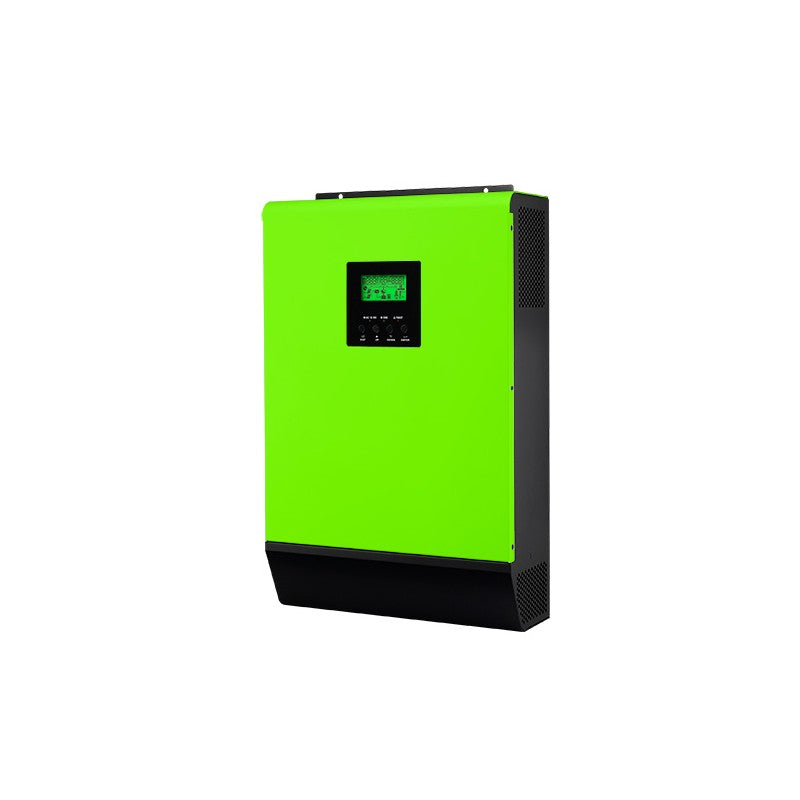

Voltronic Power InfiniSolar V-2K-24
Voltronic Power InfiniSolar V-2K-24
The InfiniSolar V by Voltronic Power is a versatile inverter designed to optimize your solar energy system. With a maximum PV array power of 2000W and a selectable output voltage range, it ensures reliable and efficient energy conversion. Ideal for residential and small commercial solar installations, the InfiniSolar V provides stable power output, making it perfect for off-grid and backup power applications.
Key Features
- Pure sine wave output
- Self-consumption and Feed-in to the — Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, — Programmable supply priority for PV, Battery or Grid
- User-adjustable charging current and voltage
- Programmable multiple operation modes: Grid-tie — Programmable multiple operation modes: Grid-tie (with battery connected), off-grid and grid-tie with backup
- Monitoring software for real-time status — Monitoring software for real-time status display and control
- Parallel operation up to 6 — Parallel operation up to 6 units only for 3K/4K/5K models
Specifications
Electrical
| Max. PV Array Open Circuit Voltage | 145Vdc |
| Acceptable Input Voltage Range | 80-130 VAC/80-150VAC |
| Communication | USB or RS232/Dry-Contact |
| Efficiency | 90% DC to AC |
| Maximum Charging Current | 60A from Grid |
| Nominal Output Voltage | 101/110/120/127 VAC 208/220/230/240 VAC |
| Output Frequency Range | 59.3~ 60.5Hz |
| Output Voltage Range | 208/220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Max. PV Array Power | 2000W |
| Rated Output Power | 2000W |
| Maximum PV Array Open Circuit Voltage | 145 VDC |
| MPPT Range @ Operating Voltage | 30 VDC ~ 115 VDC |
| MPP Tracker Number | 1 |
| Nominal Output Current | 8.7 A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 90% |
| Efficiency (DC to AC) | 93% |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Maximum AC Input Current | 30A |
| Nominal DC Voltage | 24 VDC |
| Maximum Solar Charge Current | 80 A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 140 A |
| Parallel Function | N/A |
| External Safety Box (Optional) | Yes |
| Communication Ports | USB or RS232/Dry-Contact |
Mechanical
| Dimension, D x W x H (mm) | 100 x 300 x 440 |
| Net Weight (kgs) | 8 |
| Weight | 8 |
Environmental
| Humidity | 0 – 90% RH (Non-condensing) |
| Operating Temperature | 0 to 50°C |
FAQs
What are the main performance specifications of the InfiniSolar V inverter?
The InfiniSolar V inverter has a maximum PV array power of 1000W and a rated output power of 1000W. It offers a maximum conversion efficiency of 90% and a DC to AC efficiency of 93%.
Is the InfiniSolar V inverter compatible with different battery types and solar panels?
Yes, the InfiniSolar V inverter is compatible with various solar panels within the MPPT range of 15 VDC to 115 VDC. It supports a nominal DC voltage of 12 VDC, making it suitable for different battery types.
What are the physical specifications of the InfiniSolar V inverter?
The physical specifications, including dimensions and weight, are not specified in the provided details. However, it is designed to be compact and efficient for residential and small commercial use.
What are the installation requirements for the InfiniSolar V inverter?
Installation requires a compatible solar panel setup within the specified voltage range and a nominal output voltage of 220/230/240 VAC. Professional installation is recommended to ensure optimal performance.
What warranty information is available for the InfiniSolar V inverter?
Warranty details are not specified in the provided information. It is advisable to contact Voltronic Power or the retailer for specific warranty terms and conditions.
What certifications and standards does the InfiniSolar V inverter comply with?
The InfiniSolar V inverter complies with standard certifications, ensuring it meets industry standards for safety and performance.
What are the operating conditions for the InfiniSolar V inverter?
The inverter operates efficiently within a frequency range of 50 Hz/60 Hz and an acceptable input voltage range of 90 - 280 VAC. Specific temperature and humidity conditions are not detailed.
What are the key features and benefits of the InfiniSolar V inverter?
Key features include a high power factor of > 0.99, a single MPP tracker, and selectable output voltage ranges, providing flexibility and efficiency for various applications.
