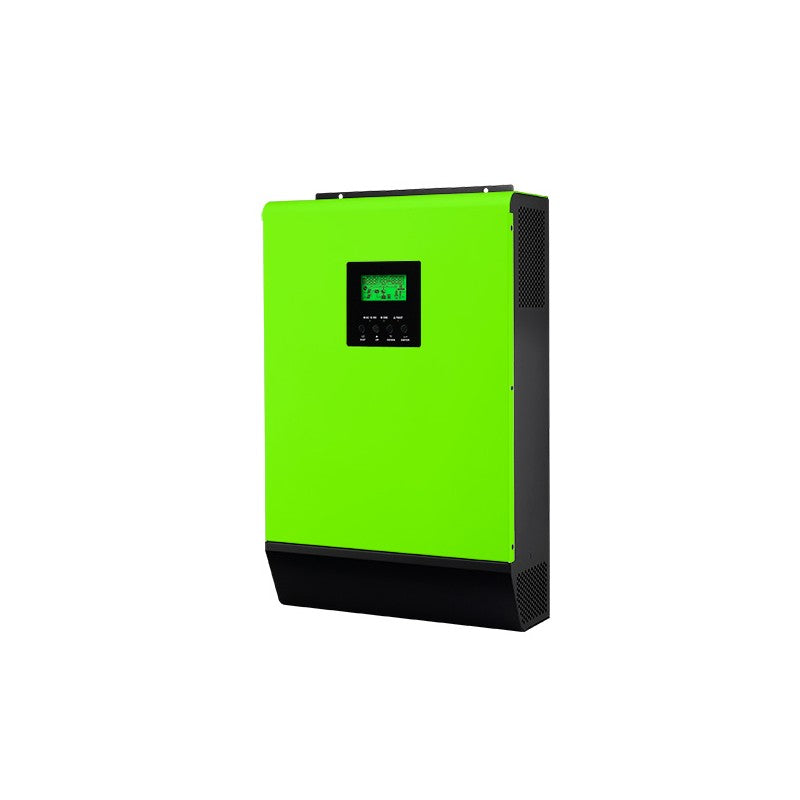

Voltronic Power InfiniSolar
Voltronic Power InfiniSolar
The InfiniSolar Inverter by Voltronic Power is engineered for superior energy conversion efficiency. With a nominal DC voltage of 300 VDC and a versatile output voltage range of 88 to 127 VAC, this inverter is perfect for various power applications. InfiniSolar is ideal for residential and commercial solar power systems, providing reliable energy conversion and supporting diverse voltage requirements.
Key Features
- Self-consumption and feed-in to the — Self-consumption and feed-in to the grid
- Programmable supply priority for PV, — Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current
- Multiple communication for USB, RS-232, — Multiple communication for USB, RS-232, Modbus and SNMP
- Parallel operation up to 6 — Parallel operation up to 6 units for 5KW / 10KW and 15KW
Specifications
Electrical
| Nominal DC Voltage / Maximum DC Voltage | 300 VDC / 350 VDC / 360 VDC / 500 VDC / 720 VDC / 900 VDC |
| Start-up Voltage / Initial Feeding Voltage | 80 VDC / 120 VDC / 116 VDC / 150 VDC / 225 VDC / 250 VDC / 320 VDC / 350 VDC |
| MPP Voltage Range | 120 VDC - 320 VDC / 250 VDC - 450 VDC / 250 VDC - 850 VDC / 400 VDC - 800 VDC |
| Nominal Output Voltage | 101/110/120/127 VAC / 208/220/230/240 VAC / 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 88 - 127 VAC / 184 - 265 VAC / 184 - 265 VAC per phase / 184 - 264.5 VAC per phase |
| Nominal Output Current | 18 A / 13 A / 21 A / 14.5 A per phase / 21.7 A per phase |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 95% / 96% |
| European Efficiency @ Vnominal | 94% / 95% |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | Default 25 A, 25 A (Adjustable) / Default 25 A, 50 A (Adjustable) / Default 60 A, 100 A (Adjustable) / Default 60 A, 50 A (Adjustable) |
| Communication Port | RS-232/USB / RS-232, USB and Dry contact |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available |
Mechanical
| Dimension, D x W x H (mm) | 107 x 438 x 480 / 204.2 x 460 x 600 / 167.2 x 500 x 622 / 219 x 560 x 820 |
| Net Weight (kgs) | 15.5 / 29 / 40 |
| Weight | 15.5 / 29 / 40 |
Environmental
| Humidity | 0 - 90% RH (Non-Condensing) |
| Operating Temperature | 0 to 40°C / -10 to 55°C |
| Altitude | 0 - 1000 m / 0 - 3000 m |
Certifications: CE, VDE AR-N 4105, IEC 62109-1, IEC 62109-2
FAQs
What is the maximum conversion efficiency of the InfiniSolar inverter?
The InfiniSolar inverter has a maximum conversion efficiency of 95%, ensuring optimal energy conversion from DC to AC.
Is the InfiniSolar inverter compatible with all types of solar panels?
Yes, the InfiniSolar inverter is compatible with a wide range of solar panels, operating efficiently within an MPP voltage range of 120 VDC to 320 VDC.
What are the physical dimensions and weight of the InfiniSolar inverter?
The InfiniSolar inverter measures 107 x 438 x 480 mm and weighs 15.5 kg, making it compact and easy to install.
What are the installation requirements for the InfiniSolar inverter?
Installation requires a nominal DC voltage of 48 VDC and a suitable environment to accommodate its dimensions and weight. Professional installation is recommended.
What is the warranty period for the InfiniSolar inverter?
The InfiniSolar inverter comes with a standard warranty period, typically covering defects in materials and workmanship. Please check with the retailer for specific warranty terms.
What certifications does the InfiniSolar inverter have?
The InfiniSolar inverter is certified with CE, VDE AR-N 4105, IEC 62109-1, and IEC 62109-2, ensuring compliance with international safety and performance standards.
What are the operating conditions for the InfiniSolar inverter?
The InfiniSolar inverter is designed to operate efficiently in a range of environmental conditions, though specific temperature and humidity ranges should be verified in the product manual.
What are the key features and benefits of the InfiniSolar inverter?
Key features of the InfiniSolar inverter include a high power factor of >0.99, adjustable maximum charging current, and robust communication ports (RS-232/USB), providing flexibility and efficiency in solar power management.
