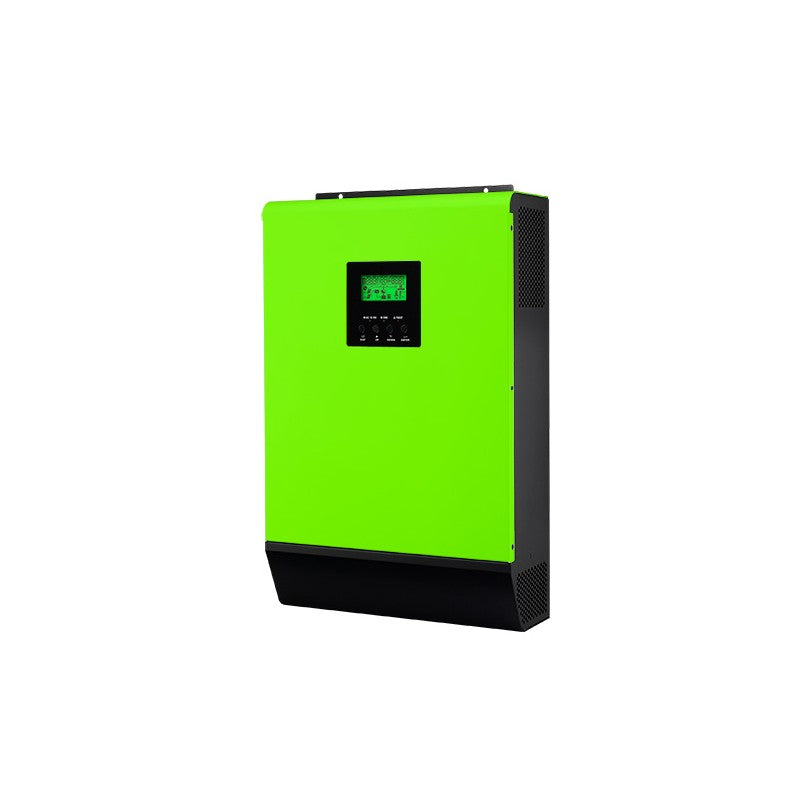

Voltronic Power Infini V 4 WP Plus
Voltronic Power Infini V 4 WP Plus
The Infini V 4 WP Plus by Voltronic Power is a state-of-the-art inverter designed to optimize energy efficiency. With a maximum DC voltage of 500 VDC and a selectable output voltage range, it offers unparalleled flexibility for various applications. Ideal for residential and commercial solar power systems, the Infini V 4 WP Plus ensures reliable energy conversion and efficient power management.
Key Features
- IP65 waterproof and dustproof
- Built-in 2 MPP trackers
- Dual outputs for smart load — Dual outputs for smart load control
- Two independent AC power sources
- Programmable supply priority for PV, — Programmable supply priority for PV, Battery or Grid
- Built-in communication port for BMS — Built-in communication port for BMS (RS485), Wi-Fi
- User-adjustable charging current and voltage
- Programmable multiple operation modes
- Parallel operation up to 9 — Parallel operation up to 9 units
- Optional IMI LCD Design for — Optional IMI LCD Design for easy configuration
Specifications
Electrical
| Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 80 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC - 450 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / 21A |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| Communication Port | USB or RS-232/Dry Contact/RS485 |
| Safety | IEC 62109, IEC 62116, IEC 61727, IEC 61683 |
| Grid Connection Standard | EN 50549-1, VDE-AR-N4105 |
Mechanical
| Dimension, D x W x H (mm) | 192 x 414 x 630 |
| Net Weight (kgs) | 29 |
Environmental
| AC Start-up Voltage / Auto Restart Voltage | 60 - 80 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
| Maximum AC Input Current | 40A |
| Humidity | 0 - 100% RH (No Condensing) |
| Operating Temperature | -10°C to 50°C |
Certifications: IEC 62109, IEC 62116, IEC 61727, IEC 61683, EN 50549-1, VDE-AR-N4105
FAQs
What is the maximum conversion efficiency of the Infini V 4 WP Plus inverter?
The Infini V 4 WP Plus inverter has a maximum conversion efficiency of 95%, ensuring optimal energy conversion from DC to AC.
Is the Infini V 4 WP Plus compatible with all types of solar panels?
Yes, the inverter is compatible with a wide range of solar panels, supporting a maximum DC voltage of 500 VDC and featuring two MPP trackers.
What are the physical dimensions of the Infini V 4 WP Plus inverter?
The dimensions of the Infini V 4 WP Plus inverter are 192 mm in depth, 414 mm in width, and 630 mm in height.
What are the installation requirements for the Infini V 4 WP Plus?
The inverter should be installed in a location with an operating temperature range of -10°C to 50°C and a humidity range of 0 to 100% RH, non-condensing.
What is the warranty period for the Infini V 4 WP Plus inverter?
The Infini V 4 WP Plus inverter comes with a standard warranty period, which typically covers several years, ensuring reliability and support.
What certifications does the Infini V 4 WP Plus hold?
The inverter is certified under IEC 62109, IEC 62116, IEC 61727, IEC 61683, EN 50549-1, and VDE-AR-N4105, ensuring compliance with international safety and performance standards.
What are the operating conditions for the Infini V 4 WP Plus?
The inverter operates efficiently in temperatures ranging from -10°C to 50°C and can handle humidity levels from 0 to 100% RH without condensing.
What are the key features and benefits of the Infini V 4 WP Plus inverter?
Key features include high efficiency, dual MPP trackers, and a wide input voltage range, making it versatile for various solar installations and ensuring maximum energy yield.
