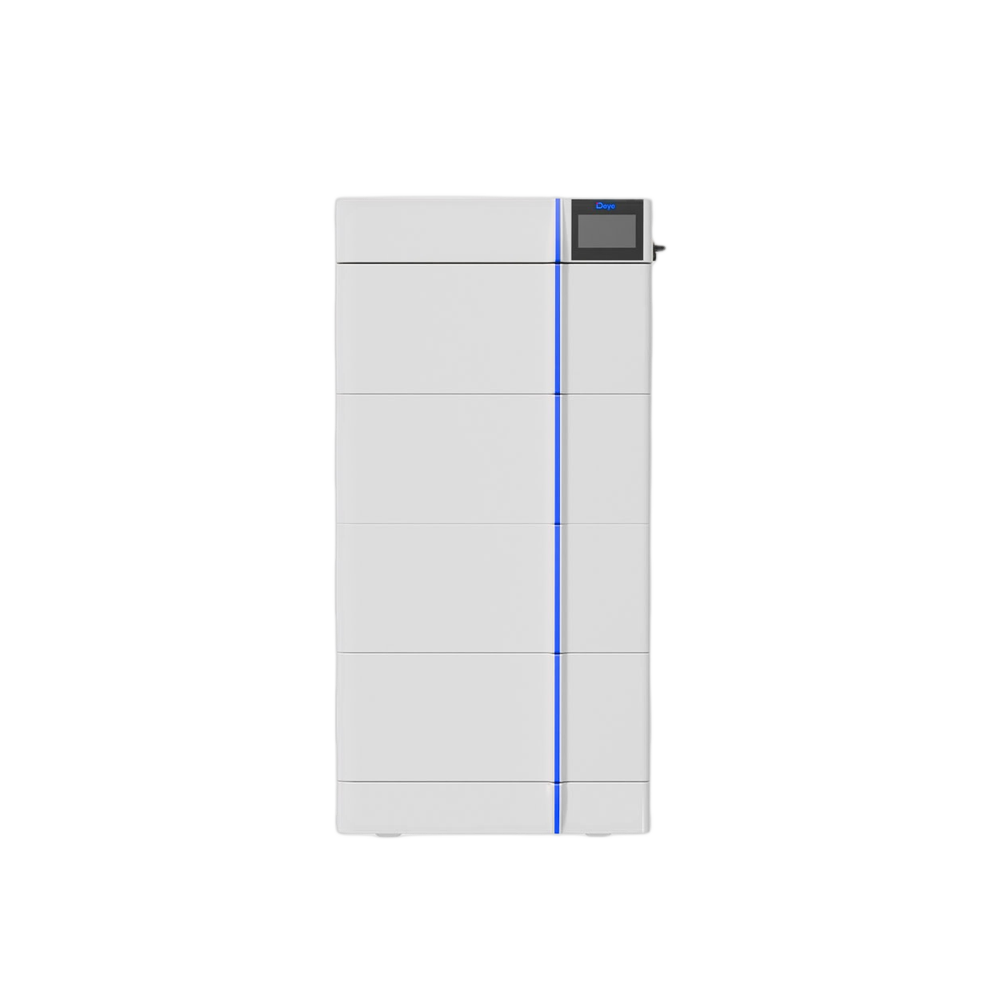

DEYE GE-F120 (AU)
DEYE GE-F120 (AU)
50 kW cabinet for a factory, hotel or clinic on a three-phase supply
The GE-F120 is a commercial battery cabinet with the inverter, the storage and the controls already inside one 2,090 kg floor-standing unit. It handles 50 kW of output and up to 65 kW of panels across four separate MPPT inputs, and its battery works at 500 V to 700 V instead of the 48 V used by home systems. This is the AU series build.
One cabinet, 2,235 mm tall and 1,780 mm wide, weighing 2,090 kg, so delivery needs machinery and a level slab. It takes 65 kW of panels across four MPPT inputs and runs a 500 V to 700 V battery, which keeps cable current low on a long run back to the switchroom. Up to ten cabinets work in parallel off grid. It is rated for -20 C to 55 C, with derating above 43 C.
At a glance
| Nominal output and UPS power | 50 kW |
| Max panel input | 65 kW |
| Battery operating voltage | 500 to 700 V |
| Weight | 2,090 kg |
Full specifications
| Battery Type | LiFePO4 |
| Warranty (years) | 10 |
| Energy Capacity (kWh) | 5.12 |
| Operating Voltage Range (V) | 500 ~ 700 |
| Grid Standards | G98, G99, C10-11, UNE 217002, NBR 16149 / NBR 16150 |
| Communication Interface | CAN, RS485, WIFI, ETH |
| Max PV Input Power (W) | 65000 |
| MPPT Efficiency (%) | 99.9 |
| MPPT Voltage Range (V) | 150-850 |
| Charge Efficiency (%) | 97.6 |
| Max Efficiency (%) | 97.6 |
| Max Operating Current (A) | 36 |
| Max Short Circuit Current (A) | 55 |
| Round Trip Efficiency (%) | 89 |
| Parallel Units | 10 |
| Peak Power (W) | 1.5 time of rated power, 10s |
| Power Factor | 0.8 |
| MPPT Nominal Voltage (V) | 600 |
| Startup Voltage (V) | 180 |
| Rated Power (W) | 50000 |
| THD (%) | 3 |
| Cycle Life | 6000 |
| Module Nominal Voltage (V) | 51.2 |
| Module Energy (kWh) | 5.12 |
| BMS Communication | CAN |
| Installation | Floor-Mounted |
| IP Rating | IP65 |
| Relative Humidity (%) | 15%~85% (No condensing) |
| Operating Temperature (°C) | -20 ~ 55 ( ＞43 derating ) |
| Storage Temperature Range (°C) | 0 ~ 35 |
| Charging Temperature Range (°C) | 0~55 |
| Discharging Temperature Range (°C) | -20~55 |
Model code: GE-F120-SERIES-AU
