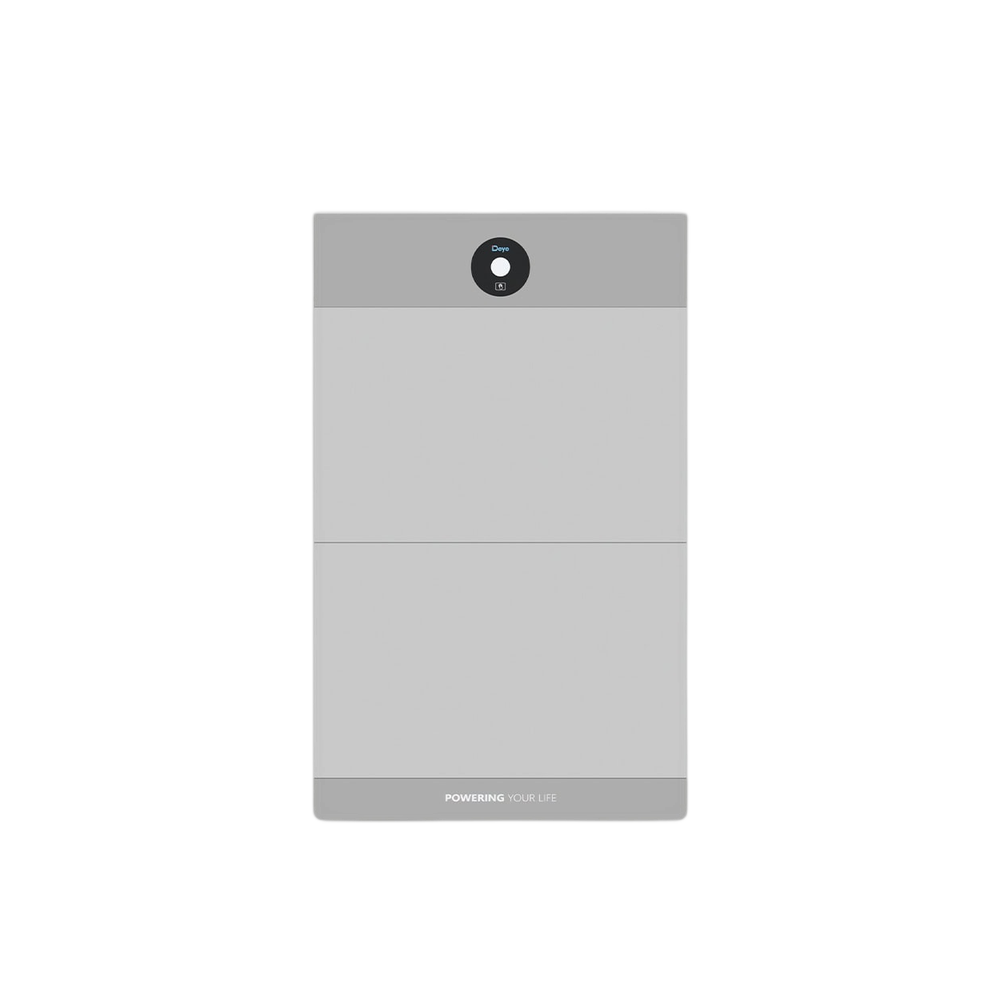

Deye 4–16 kWh High-Voltage Stackable Home Battery (GB-A)
Deye 4–16 kWh High-Voltage Stackable Home Battery (GB-A)
Deye 4–16 kWh High-Voltage Stackable Home Battery (GB-A), available in 3 ratings, 4 kWh to 16 kWh. Each rating is a different machine with its own figures. Pick the one that matches your system below, then select it in the options above.
True of every rating
- Sealed against dust and rain (IP65), so it can live outdoors
- 10 Years manufacturer warranty
- Certified to JET
Choose your rating
4 kWh Deye GB-A battery for evening backup in a small home
The entry size, listed as GB-A-PACK4, at 4 kWh. It arrives as a single 62 kg unit in a 700 x 695 x 200 mm carton, the only one of the three a pair of installers can move without a trolley. It suits a household that wants lighting, a fridge and fans carried through the evening rather than the whole house running off storage.
Storage capacity: 4 kWh · Model code: GB-A-PACK4 · Shipping weight: 62 kg · Carton size: 700 x 695 x 200 mm
Model code: GB-A-PACK4
10 kWh Deye GB-A battery to carry a family home overnight
Listed as GB-A-PACK6 at 10 kWh, the middle size. It weighs 121 kg and ships in a 700 x 1135 x 200 mm carton, 440 mm taller than the 4 kWh unit, so measure the wall run before you order. This is usually the size that takes a family home from sunset to sunrise with a fridge, fans and a water pump still running.
Storage capacity: 10 kWh · Model code: GB-A-PACK6 · Shipping weight: 121 kg · Carton size: 700 x 1135 x 200 mm
Model code: GB-A-PACK6
16 kWh Deye GB-A battery, the doubled pack for whole-home backup
The largest size, listed as GB-A-PACK6*2 at 16 kWh, and the code marks it as the doubled stack. It weighs 180 kg and ships in a 700 x 1575 x 200 mm carton, so it needs a prepared, level floor and about 1.6 m of clear height. Choose it when an air conditioner or a borehole pump has to keep running after dark, not just lights and a fridge.
Storage capacity: 16 kWh · Model code: GB-A-PACK6*2 · Shipping weight: 180 kg · Carton size: 700 x 1575 x 200 mm
Model code: GB-A-PACK6-2
Full specifications shared across all 3 ratings
| Module Capacity (Ah) | 39.1 |
| Nominal Voltage (V) | 51.2 |
| Usable Energy (kWh) | 3.6 |
| System Energy (kWh) | 4 |
| Module Energy (kWh) | 2 |
| Battery Type | LiFePO4 |
| Max Continuous Charge Discharge Current (A) | 37 |
| Recommended Charge Discharge Current (A) | 20 |
| Max AC Charge Current (A) | 28 |
| Communication Interface | CAN2.0/ RS485 |
| Max Discharge Current (A) | 37 |
| Recommended DOD (%) | 90 |
| Max Charge Power (W) | 10000 |
| System Nominal Voltage (V) | 153.6 |
| Operating Voltage Range (V) | 358.4~460.8 |
| Module Nominal Voltage (V) | 51.2 |
| Max Charge Current (A) | 28 |
| Design Form Factor | Floor l mount |
| IP Rating | IP65 |
| Available Models | 5kW, 6kW, 8kW |
| Max Altitude (m) | 2000 |
| Operating Temperature (°C) | Charge/Discharge: -20~55 |
| Relative Humidity (%) | 5 ~ 95 |
| Storage Temperature Range (°C) | 0~35 |
| Weight (kg) | 62 |
| Dimensions (mm) | 700 x 695 x 200 |
