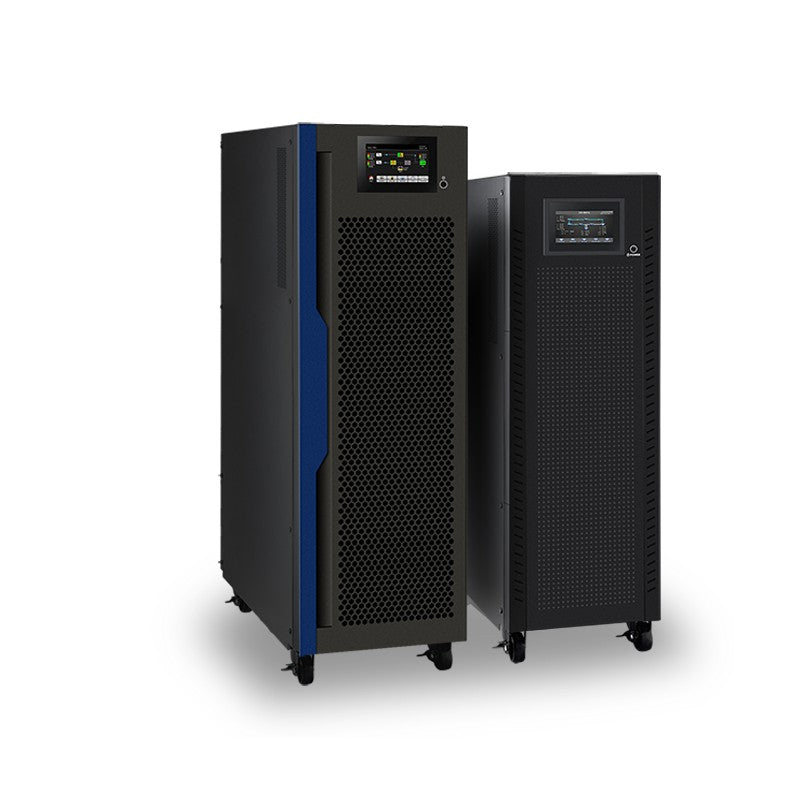

Voltronic Power Galleon III 3P/3P 30K
Voltronic Power Galleon III 3P/3P 30K
The Voltronic Power Galleon III 3P/3P 30-60KVA is a robust online UPS designed to deliver reliable power protection. With a nominal voltage of 3 x 380/400/415 VAC and precise AC voltage regulation of ±1%, it ensures optimal performance for critical applications. Ideal for data centers, industrial facilities, and telecommunications, the Galleon III provides seamless power continuity and protection against voltage fluctuations.
Key Features
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 1.0
- Active power factor correction in — Active power factor correction in all phases
- 50Hz/60Hz frequency converter mode
- ECO mode operation for energy — ECO mode operation for energy saving (ECO)
- Emergency power off function (EPO)
- Generator compatible
- SNMP+USB+RS-232 multiple communications
- 3-stage extendable charging design for — 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers for long-run — Adjustable battery numbers for long-run model
- Maintenance bypass available
- Optional parallel operation
- Optional isolation transformer offers full — Optional isolation transformer offers full isolation and complete common mode noise rejection
Specifications
Electrical
| Rated Output Power (VA) | 30kVA |
| Rated Output Power (W) | 30kW |
| Nominal Voltage | 3 x 380/400/415 VAC (3Ph+N) |
| Voltage Range | 190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load |
| Frequency Range | 46-54 Hz or 56-64 Hz |
| Power Factor | ≥ 0.99 @ 100% Load |
| Output Voltage | 3 x 380/400/415 VAC (3Ph+N) |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46-54Hz or 56-64Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤ 2% THD (Linear Load) ; ≤ 5% THD (Non-linear Load) |
| Transfer Time | 0 ms |
| Waveform (Batt. Mode) | Pure Sine wave |
| AC Mode | 95.5% |
| ECO Mode | 98.5% |
| Battery Type | 12V/7Ah |
| Numbers | (16+16)pcs x 2 strings |
| Charging Current (max.) | 2A (Default) |
| Charging Voltage | 218 VDC |
| Smart RS-232 / USB | Supports Windows® Family, Linux and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
Mechanical
| Dimension, DxWxH (mm) | 815 x 300 x 1000 |
| Net Weight (kgs) | 207 |
| Long-run Model Dimension, DxWxH (mm) | 815 x 300 x 1000 |
| Long-run Model Net Weight (kgs) | 55 |
| Weight | 207 kg |
Environmental
| Operation Temperature | 0-40°C |
| Humidity | < 95% and non-condensing |
| Noise Level | Less than 65 dB @ 1 Meter |
FAQs
What are the main performance specifications of the Galleon III 3P/3P 30-60KVA?
The Galleon III offers high efficiency with AC mode at 95.5%, ECO mode at 98.5%, and battery mode at 94.5%. It supports a nominal voltage of 3 x 380/400/415 VAC and maintains a power factor of ≥ 0.99 at full load.
Is the Galleon III compatible with different battery types and solar panels?
The Galleon III is designed to be compatible with a wide range of battery types. However, specific compatibility with solar panels should be verified with Voltronic Power or your installer.
What are the physical specifications of the Galleon III?
The physical dimensions and weight of the Galleon III are not specified here. For detailed specifications, please refer to the product manual or contact Voltronic Power.
What are the installation requirements for the Galleon III?
Installation of the Galleon III requires a 3-phase power supply and should be performed by a qualified technician to ensure proper setup and safety compliance.
What warranty does the Galleon III come with?
The Galleon III typically comes with a standard warranty. For specific warranty terms and conditions, please consult the product documentation or contact Voltronic Power.
What certifications and standards does the Galleon III meet?
The Galleon III meets standard certifications, ensuring compliance with industry regulations. For detailed certification information, refer to the product documentation.
What are the operating conditions for the Galleon III?
The Galleon III is designed to operate efficiently within a specific temperature and humidity range. For precise operating conditions, please refer to the product manual.
What are the key features and benefits of the Galleon III?
Key features of the Galleon III include zero transfer time, pure sine wave output in battery mode, and low harmonic distortion, making it ideal for sensitive electronic equipment.
