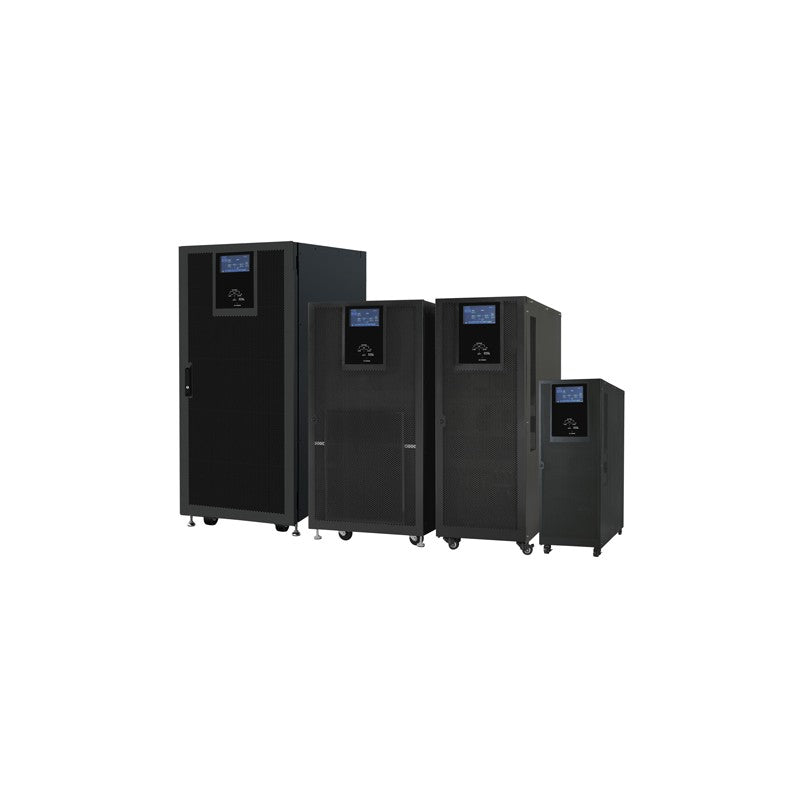

Voltronic Power Fortress 3/3 120K
Voltronic Power Fortress 3/3 120K
The Fortress 3phase UPS from Voltronic Power is engineered to deliver robust and reliable power protection for critical applications. With a nominal voltage of 3 x 380/400/415 VAC and auto-sensing frequency, it ensures seamless operation across various environments. Ideal for data centers, industrial facilities, and telecommunications, the Fortress 3phase UPS provides consistent power regulation and protection against voltage fluctuations.
Key Features
- Backfeed detection built-in
- Single power module on/off control — Single power module on/off control through LCD panel
- Pluggable power module design with — Pluggable power module design with front access
- Parallel operation up to 4 — Parallel operation up to 4 units with common battery
- Dual-mains inputs
- Built-in 4 switches including Mains — Built-in 4 switches including Mains input, bypass input, output and maintenance bypass switch
- Flexible battery configuration and adjustable — Flexible battery configuration and adjustable charging current
- Optional extra communication is available
- Emergency power off function (EPO)
- Generator compatible
- 50Hz/60Hz frequency converter mode
- Compatible to Lithium-ion battery
Specifications
Electrical
| Nominal Voltage | 3 x 380/400/415 VAC (3Ph+N) |
| Voltage Range | 110-300 VAC @ 50% load; 184-276 VAC @100% load |
| Nominal Frequency | 50/60Hz (Auto sensing) |
| Frequency Range | 40Hz ~ 70Hz |
| Power Factor | >= 0.99 @ 100% load |
| Harmonic Distortion (THDi) | <5% @ 100% load |
| Voltage Regulation (Steady state) | ≤ ± 2% Typical (unbalanced load) |
| Frequency Range (Synchronized range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| Overload Capability | ≤ 110% for 1 hour, 111% ~ 125% for 10 mins, 126%~150% for 1 min and >150% for 200ms |
| Harmonic Distortion | ≤ 2% THD (Linear Load); ≤ 4% THD (Non-linear Load) |
| AC Mode | 95.5% |
| ECO Mode | 98.5% |
| Maximum Voltage | +/- 240V (12V x 40 Pcs) |
| Minimum Voltage | +/- 192V (12V x 32 Pcs) |
| Floating Charge Voltage | 2.28V / Cell (2.25 ~ 2.33 Selectable) |
| Boost Charging Voltage | 2.35V/Cell |
| Maximum Charging Current | 36A (Adjustable) |
| Management | Supports Windows® Family, Linux and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Safety | IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 Category C3 |
Mechanical
| IP Class | IP20, optional IP31 |
| Dimension, D x W x H (mm) | 1000x430x1200 |
| Net Weight (Kgs) | 169 |
| Weight | 169 |
Environmental
| Operating Temperature | 0-40°C |
| Operating Humidity | < 95% and non-condensing |
| Altitude | <1000m for Nominal power |
Certifications: IEC/EN 62040-1, IEC/EN 62040-2 Category C3
FAQs
What are the main performance specifications of the Fortress 3phase UPS?
The Fortress 3phase UPS offers high efficiency with 95% in AC mode, 98% in ECO mode, and 94% in battery mode. It supports a nominal voltage of 3 x 380/400/415 VAC (3Ph+N) and a power factor of >= 0.99 at full load.
Is the Fortress 3phase UPS compatible with different battery types or solar panels?
The Fortress 3phase UPS is designed to be compatible with various battery types. However, it does not directly support solar panels without additional equipment.
What are the physical specifications of the Fortress 3phase UPS?
The specific dimensions and weight of the Fortress 3phase UPS are not provided in the key specifications. Please refer to the product manual or contact Voltronic Power for detailed physical specifications.
What are the installation requirements for the Fortress 3phase UPS?
Installation of the Fortress 3phase UPS requires a stable environment with proper ventilation. It should be installed by a qualified technician to ensure compliance with electrical standards.
What is the warranty period for the Fortress 3phase UPS?
The Fortress 3phase UPS typically comes with a standard warranty period. Please check with Voltronic Power or your supplier for specific warranty terms and conditions.
What certifications and standards does the Fortress 3phase UPS comply with?
The Fortress 3phase UPS complies with IEC/EN 62040-1 and IEC/EN 62040-2 Category C3 standards, ensuring safety and performance reliability.
What are the operating conditions for the Fortress 3phase UPS?
The Fortress 3phase UPS is designed to operate efficiently within a wide frequency range of 40Hz to 70Hz. It should be used in environments with controlled temperature and humidity levels.
What are the key features and benefits of the Fortress 3phase UPS?
Key features of the Fortress 3phase UPS include high efficiency, robust voltage regulation, and excellent overload capability. These features ensure reliable power supply and protection for critical systems.
