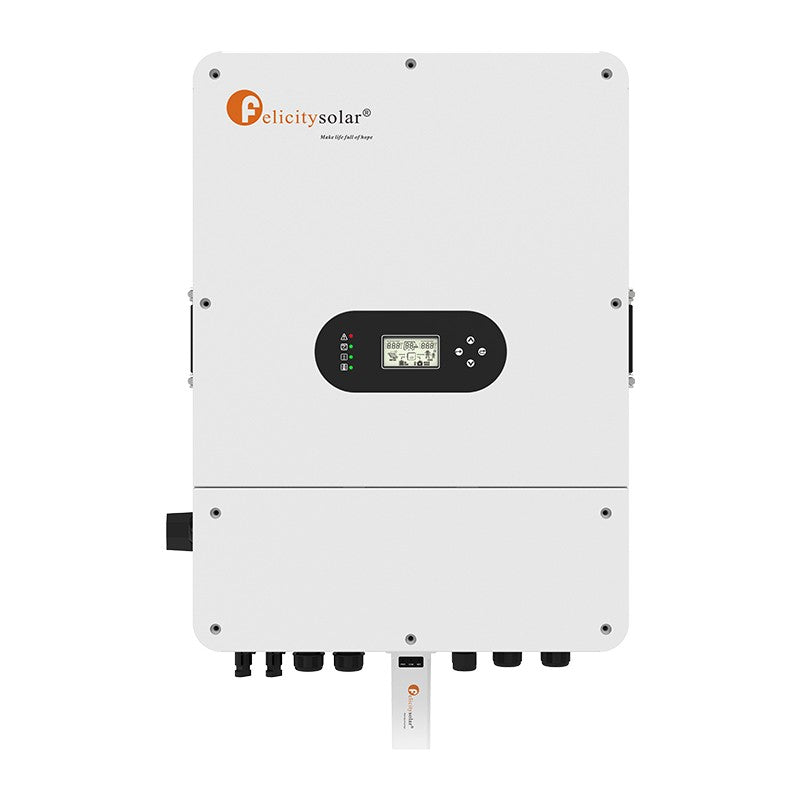

Felicity Solar 10–20 kW Three-Phase Low-Voltage Hybrid Solar Inverter
10 kW
Dhs. 5,500.00
Skip to product information
Felicity Solar 10–20 kW Three-Phase Low-Voltage Hybrid Solar Inverter
Dhs. 5,500.00
Felicity Solar 10–20 kW Three-Phase Low-Voltage Hybrid Solar Inverter, available in 7 ratings, 10 kW to 20 kW. Each rating is a different machine with its own figures. Pick the one that matches your system below, then select it in the options above.
True of every rating
- Sealed against dust and rain (IP65), so it can live outdoors
- 2 independent trackers, so panels on different roof faces do not drag each other down
- 2 Years manufacturer warranty
Choose your rating
10 kW
Model IVGM10KLP3G1. Full specifications are listed below.
12 kW
Model IVGM12KLP3G1. Full specifications are listed below.
14 kW
Model IVGM14KLP3G1. Full specifications are listed below.
15 kW
Model IVGM15KLP3G1. Full specifications are listed below.
16 kW
Model IVGM16KLP3G1. Full specifications are listed below.
18 kW
Model IVGM18KLP3G1. Full specifications are listed below.
20 kW
Model IVGM20KLP3G1. Full specifications are listed below.
Full specifications shared across all 7 ratings
| MPPT Voltage Range (V) | 160-650 |
| MPPT And Strings | 2/2+2 |
| Battery Type Supported | Li-Ion / Lead-acid |
| Battery Voltage Range (V) | 40-60 |
| Startup Voltage (V) | 160 |
| Nominal DC Voltage (V) | 550 |
| Peak Power Duration | 2 Times of Rated Power, 10s |
| Over Current Protection | Yes |
| AC Grid Connection Type | 3L+N+PE |
| DC Reverse Polarity Protection | Yes |
| Over Voltage Protection | Yes |
| AC Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Insulation Resistance Monitoring | Yes |
| DC Component Monitoring | Yes |
| Grid Monitoring | Yes |
| Anti Islanding Protection | Yes |
| DC Switch | Yes |
| Overload Protection | Yes |
| Residual Current Monitoring | Yes |
| Surge Protection | TYPE II (DC), TYPE II (AC) |
| BMS Communication | RS485/CAN |
| Monitoring | WiFi/4G |
| Net Weight (kg) | 48.7 |
| Gross Weight (kg) | 60.2 |
| Dimensions (mm) | 750 x 450 x 268 |
| Package Dimensions (mm) | 889 x 566 x 397 |
| IP Rating | IP65 |
| Grid Standards | NRS 097-2-1, VDE4105, EN50549-1, AS 4777.2, GB/T 34120, GB/T 34133, GB/T 34129 |
| Safety Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Warranty (years) | 5 |
| Weight (kg) | 60.2 |
| MPPT Count | 2 |
| Phase | 3L+N+PE |
