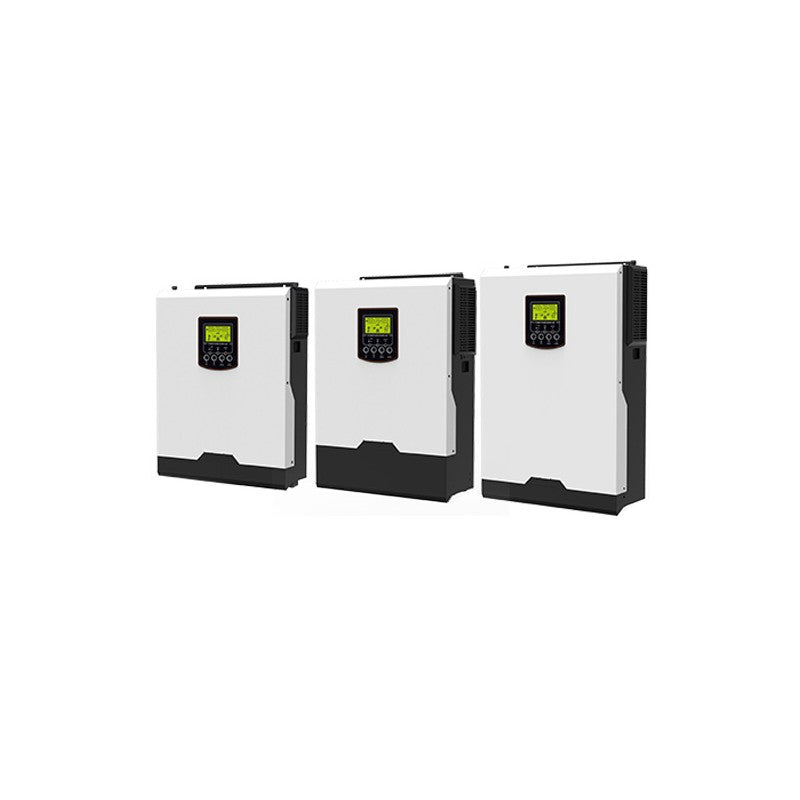

Voltronic Power Evolution 400
Voltronic Power Evolution 400
The Voltronic Power Evolution 400 is engineered to provide reliable power protection with versatile voltage options of 110/120VAC or 220/230/240VAC. Its auto-sensing frequency range of 60/50 Hz ensures seamless operation across various environments. Ideal for safeguarding sensitive electronics, home office setups, and small business networks, ensuring uninterrupted power and data integrity.
Key Features
- Compact size
- Boost and buck AVR for — Boost and buck AVR for voltage stabilization
- Auto restart while AC is — Auto restart while AC is recovering
- Simulated sine wave output
- Off-mode charging
- Cold start function
- Generator compatible (option)
- Optional 5V USB charging port
- Compact size for stand and — Compact size for stand and mounting flexibility
Specifications
Electrical
| Rated Output Power (VA) | 400VA |
| Rated Output Power (W) | 240W |
| Voltage | 110/120 VAC or 220/230/240 VAC |
| Voltage Range | 81-134VAC/89-145VAC or 162-268VAC/170-280VAC/177-290VAC |
| Frequency Range | 60/50 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | ±10% |
| Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz |
| Transfer Time | Typical 2-6 ms, 10 ms max. |
| Waveform (Batt. Mode) | Simulated Sinewave |
| Typical Recharge Time | 4-6 hours recover to 90% capacity |
Mechanical
| Dimension, D x W x H (mm) | 245 x 163 x 90 |
| Net Weight (kgs) | 3.5 |
Environmental
| Full Protection | Overload, discharge, and overcharge protection |
| Humidity | 0 to 90% Relative Humidity (Non-condensing) |
| Noise Level | Less than 40dB |
FAQs
What are the main performance specifications of the Evolution 400?
The Evolution 400 operates with a voltage of 110/120 VAC or 220/230/240 VAC and has a voltage range of 81-134VAC/89-145VAC or 162-268VAC/170-280VAC/177-290VAC. It features an auto-sensing frequency range of 60/50 Hz and provides a simulated sinewave output in battery mode.
Is the UPS compatible with different battery types or solar panels?
The UPS uses a 12 V 4.5 Ah battery and is not specifically designed for direct integration with solar panels. It is primarily intended for use with standard grid power.
What are the physical dimensions and weight of the UPS?
The UPS measures 245 x 163 x 90 mm and has a net weight of 3.5 kg. It does not have an IP rating, indicating it is not specifically rated for dust or water resistance.
What are the installation requirements for the UPS?
Installation requires a stable environment with a power source within the specified voltage range. Ensure adequate ventilation and avoid placing the UPS in direct sunlight or near heat sources.
What warranty information is available for this UPS?
Voltronic Power typically offers a standard warranty for their UPS products, covering manufacturing defects. Specific warranty terms should be confirmed with the retailer or distributor.
What certifications and standards does the UPS comply with?
The Evolution 400 complies with standard certifications, ensuring it meets industry safety and performance standards. Specific certifications can be confirmed with the manufacturer.
What are the operating conditions for temperature and humidity?
The UPS operates effectively in environments with 0 to 90% relative humidity (non-condensing) and should be kept in a temperature-controlled environment to ensure optimal performance.
What are the key features and benefits of this UPS?
Key features include overload, discharge, and overcharge protection, a typical transfer time of 2-6 ms, and a noise level of less than 40dB. These features ensure reliable performance and protection for connected devices.
