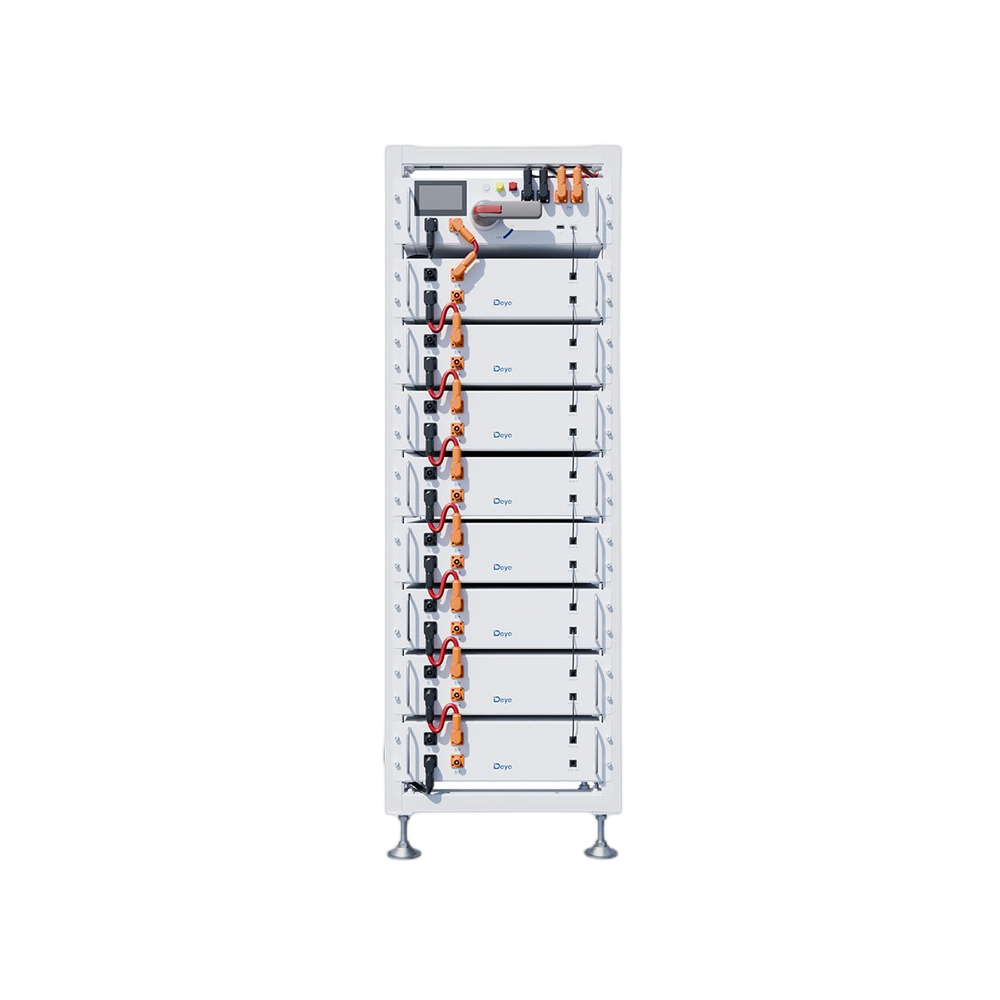

Deye 60 kWh Low-Voltage Commercial Battery System
Deye 60 kWh Low-Voltage Commercial Battery System
61.44 kWh rack battery for shops and clinics needing all-day storage
The BOS-GL60 is a rack-mounted battery cabinet for a shop, a clinic or a small factory that wants a day of storage rather than an evening of it. Modules of 51.2 V stack six in series to set the system at 307.2 V, and the full rack holds 61.44 kWh, of which 55.29 kWh is meant to be used at the recommended 90% depth of discharge. It arrives as one 610 kg rack standing 2,219 mm tall.
One rack, 61.44 kWh, running at 307.2 V and working anywhere between 268.8 V and 350.4 V as it charges and empties. Charge and discharge are capped at 100 A, with 125 A allowed for two minutes when a compressor or a motor starts. It weighs 610 kg and stands 2,219 mm tall, so it needs a ground-floor room with a level slab. The enclosure is IP20, which means dry and indoors.
At a glance
| System energy | 61.44 kWh |
| Usable energy | 55.29 kWh |
| System voltage | 307.2 V (268.8 to 350.4 V) |
| Weight | 610 kg |
Full specifications
| System Capacity (kW) | 60 |
| Nominal Voltage (V) | 51.2 |
| System Nominal Voltage (V) | 307.2 |
| Operating Voltage Range (V) | 268.8~350.4 |
| Number Of Modules | 6 |
| Battery Type | LiFePO4 |
| Communication Interface | CAN2.0/ RS485 |
| Peak Charge Discharge Current (A) | 125 |
| Module Capacity (Ah) | 100 |
| Module Energy (kWh) | 5.12 |
| Module Nominal Voltage (V) | 51.2 |
| Recommended DOD (%) | 90 |
| System Energy (kWh) | 61.44 |
| Usable Energy (kWh) | 55.29 |
| Nominal Charge Discharge Current (A) | 100 |
| Design Form Factor | Rack Mounting |
| IP Rating | IP20 |
| Storage Temperature Range (°C) | 0~35 |
| Operating Temperature (°C) | Charge: 0~55°C/Discharge:-20 ~ 55°C |
| Relative Humidity (%) | 5% - 85% (RH) |
| Charging Temperature Range (°C) | 0~55 |
| Discharging Temperature Range (°C) | -20~55 |
| Max Altitude (m) | 2000 |
| Weight (kg) | 610 |
| Dimensions (mm) | 530 x 2219 x 602 |
Model code: BOS-GL60-GH60
