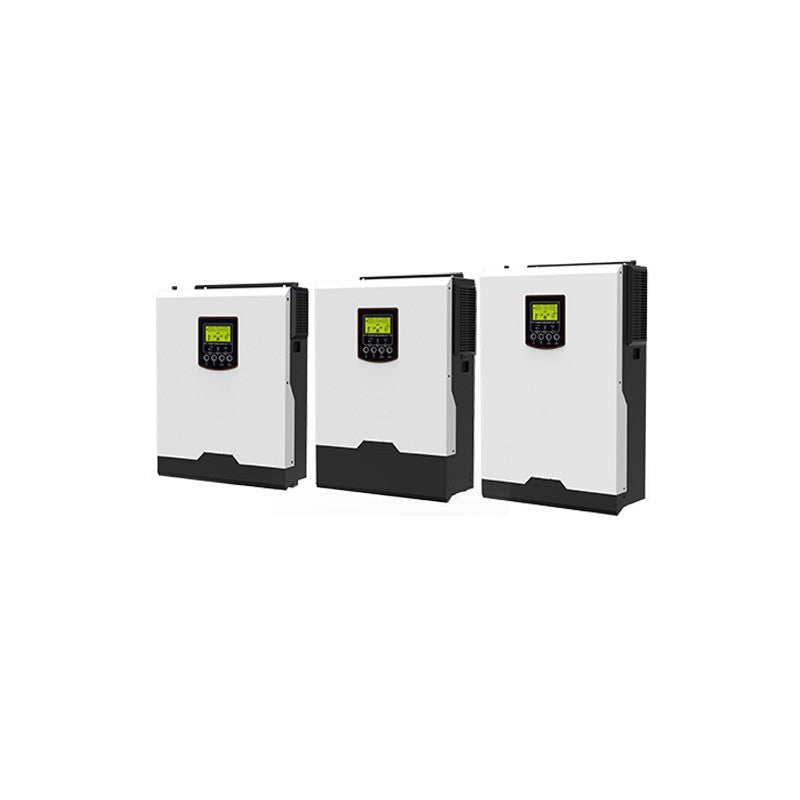

Voltronic Power Axpert VM III TWIN 6K
Voltronic Power Axpert VM III TWIN 6K
The Axpert VM III TWIN by Voltronic Power is a high-performance inverter designed to deliver reliable power with an AC voltage regulation of 230VAC ± 10%. With a surge power capacity of 12000VA and peak efficiency ranging from 90% to 93%, this inverter is ideal for various demanding applications. The Axpert VM III TWIN is perfect for residential and commercial setups requiring stable power supply, including backup power systems and renewable energy installations.
Key Features
- Detachable LCD control module with — Detachable LCD control module with various communications
- Maximum PV input current 27A
- Dual output for smart load — Dual output for smart load management
- Built-in WiFi for mobile monitoring — Built-in WiFi for mobile monitoring (App is available)
- Supports USB On-the-Go function
- Reserved communication port (RS485, CAN-BUS — Reserved communication port (RS485, CAN-BUS or RS232) for BMS
- Battery independent design
- Battery equalization extends lifecycle
- User-friendly LCD operation
- Replaceable fan design for ease — Replaceable fan design for ease of maintenance
Specifications
Electrical
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 6000W |
| MPP Range @ Operating Voltage | 60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Mechanical
| Dimension, D x W x H (mm) | 115 x 300 x 435 |
| Net Weight (kgs) | 10 |
Environmental
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert VM III TWIN inverter?
The Axpert VM III TWIN inverter offers an AC voltage regulation of 230VAC ± 10% in battery mode, a surge power of 12000VA, and a peak efficiency between 90% and 93%. It provides a pure sine wave output with a transfer time of 10 ms suitable for personal computers.
Is the Axpert VM III TWIN inverter compatible with different battery types and solar panels?
Yes, the inverter is compatible with a 48 VDC battery system and supports MPPT solar chargers. It can handle a maximum PV array power of 6000W and a maximum PV input current of 27A.
What are the physical specifications of the Axpert VM III TWIN inverter?
The physical dimensions and weight of the Axpert VM III TWIN inverter are not specified in the provided details. However, it is designed to be robust and suitable for various installation environments.
What are the installation requirements for the Axpert VM III TWIN inverter?
Installation of the Axpert VM III TWIN inverter requires a compatible battery system, appropriate solar panel setup, and adherence to local electrical standards. It is recommended to have a professional installer for optimal performance.
What warranty does the Axpert VM III TWIN inverter come with?
The warranty information for the Axpert VM III TWIN inverter is not specified in the provided details. It is advisable to check with the retailer or manufacturer for specific warranty terms.
What certifications and standards does the Axpert VM III TWIN inverter comply with?
The Axpert VM III TWIN inverter complies with standard certifications, ensuring it meets industry safety and performance standards. Specific certifications are not detailed in the provided information.
What are the operating conditions for the Axpert VM III TWIN inverter?
The operating conditions such as temperature and humidity for the Axpert VM III TWIN inverter are not specified. It is generally recommended to operate in a cool, dry environment for optimal performance.
What are the key features and benefits of the Axpert VM III TWIN inverter?
Key features of the Axpert VM III TWIN inverter include its high efficiency of up to 93%, pure sine wave output, and MPPT solar charger compatibility. These features ensure reliable power conversion and efficient solar energy utilization.
