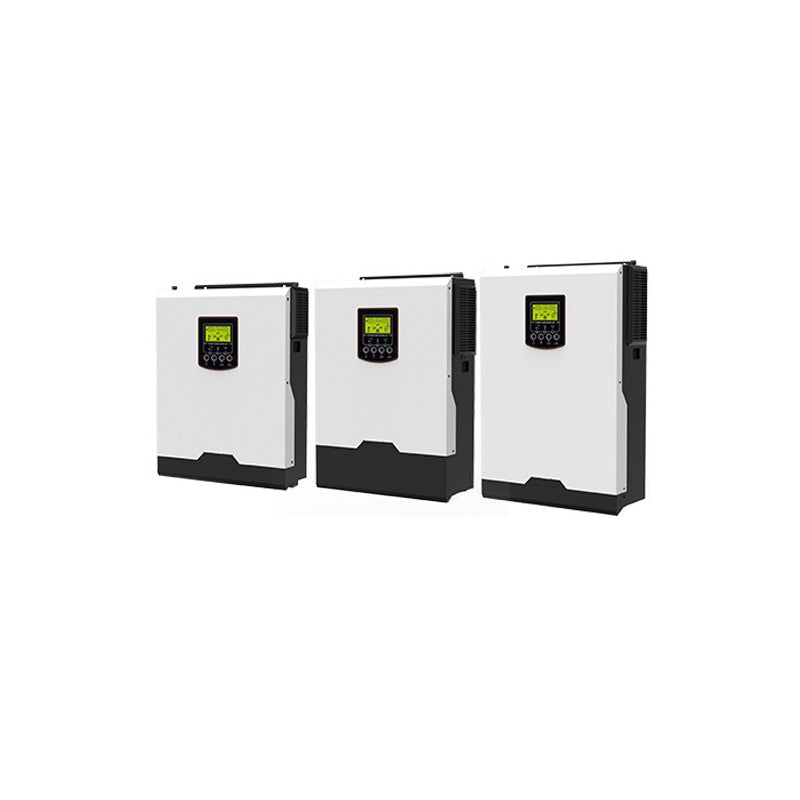

Voltronic Power Axpert VM III TRI 4.5K
Voltronic Power Axpert VM III TRI 4.5K
The Axpert VM III TRI by Voltronic Power is a versatile inverter designed to meet your power needs with precision. Featuring a 230 VAC output and a robust 9000VA surge power, this inverter ensures reliable performance. Its auto-sensing frequency range of 50/60 Hz makes it adaptable for various applications. Ideal for personal computers, home appliances, and small office setups, the Axpert VM III TRI provides stable and efficient power conversion.
Key Features
- Dual inputs and three outputs — Dual inputs and three outputs for smart energy management
- Maximum PV input current 40A
- Built-in Wi-Fi for mobile monitoring — Built-in Wi-Fi for mobile monitoring and OTA firmware
- Supports USB (Type-C) On-the-Go function — Supports USB (Type-C) On-the-Go function for exporting log and firmware upgrade
- Reserved communication port for BMS
- Built-in external CT sensor to — Built-in external CT sensor to guarantee 100% self-consumption
- Battery independent design
- Built-in 120A MPPT solar charger
- Built-in anti-dust kit
Specifications
Electrical
| Default Charging Current | 60A |
| PV Voltage Accuracy | 2V |
| Rated Power | 4500VA/4500W |
| Efficiency (Line Mode) | >95% (Rated R load |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
| High Loss Return Voltage | 270Vac±7V |
| High Loss Voltage | 280Vac±7V |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| Low Loss Return Voltage | 100Vac±7V (Appliances) |
| Max AC Input Voltage | 300Vac |
| Nominal DC Input Voltage | 24Vdc |
| Nominal Input Frequency | 50Hz/60Hz (Auto detection) |
| Nominal Input Voltage | 230Vac |
| Output Frequency | 50Hz or 60Hz |
| Output Power | 20ms typical (Appliances) |
| Peak Efficiency | 90% |
| Rated Output Power | 3KVA/2.4KW |
| Cold Start Voltage | 23.0Vdc |
| Efficiency | >95% ( Rated R load Line Mode |
| Floating Charging Voltage | 27Vdc |
| Output | Temperature of internal converter |
| Output Short Circuit Protection | Circuit Breaker |
| Output Voltage Regulation | 230Vac± 5% |
| Output Voltage Waveform | Pure Sine Wave |
| Safety Certification | CE |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 9000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) |
| Waveform | Pure sine wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 6500W |
| MPP Range @ Operating Voltage | 60 – 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 |
Mechanical
| Dimension, D x W x H (mm) | 131 x 336 x 435.5 |
| Net Weight (kgs) | 11.8 |
Environmental
| Operating Temperature Range | -10°C to 50°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
Certifications: IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12
FAQs
What are the main performance specifications of the Axpert VM III TRI inverter?
The Axpert VM III TRI inverter offers a peak efficiency of 93%, a surge power of 9000VA, and operates at a voltage of 230 VAC. It supports a selectable voltage range of 170-280 VAC for personal computers and features a pure sine wave output.
Is the Axpert VM III TRI compatible with different battery types and solar panels?
Yes, the Axpert VM III TRI is compatible with a 24 VDC battery system and supports MPPT solar charging with a maximum PV array power of 6500W. It can handle an MPP range of 60 – 450 VDC and a maximum PV array open circuit voltage of 500 VDC.
What are the physical specifications of the Axpert VM III TRI inverter?
The physical dimensions and weight of the Axpert VM III TRI inverter are not specified in the provided details. Please refer to the product manual or contact Voltronic Power for precise information.
What are the installation requirements for the Axpert VM III TRI?
Installation of the Axpert VM III TRI requires adherence to local electrical codes and standards. It should be installed in a well-ventilated area to ensure optimal performance and longevity.
What warranty does the Axpert VM III TRI come with?
The warranty information for the Axpert VM III TRI is not specified in the provided details. Please consult the product documentation or contact Voltronic Power for warranty specifics.
What certifications and standards does the Axpert VM III TRI comply with?
The Axpert VM III TRI complies with several international standards, including IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, and 61000-3-12, ensuring high safety and performance levels.
What are the operating conditions for the Axpert VM III TRI?
The specific operating temperature and humidity range for the Axpert VM III TRI are not detailed in the provided information. Please refer to the product manual for detailed environmental requirements.
What are the key features and benefits of the Axpert VM III TRI?
Key features of the Axpert VM III TRI include a high efficiency of 93%, pure sine wave output, and MPPT solar charging capability. These features ensure reliable performance and efficient energy conversion.
