Voltronic Power VM II-6000 TWIN-PV 8000
Voltronic Power VM II-6000 TWIN-PV 8000

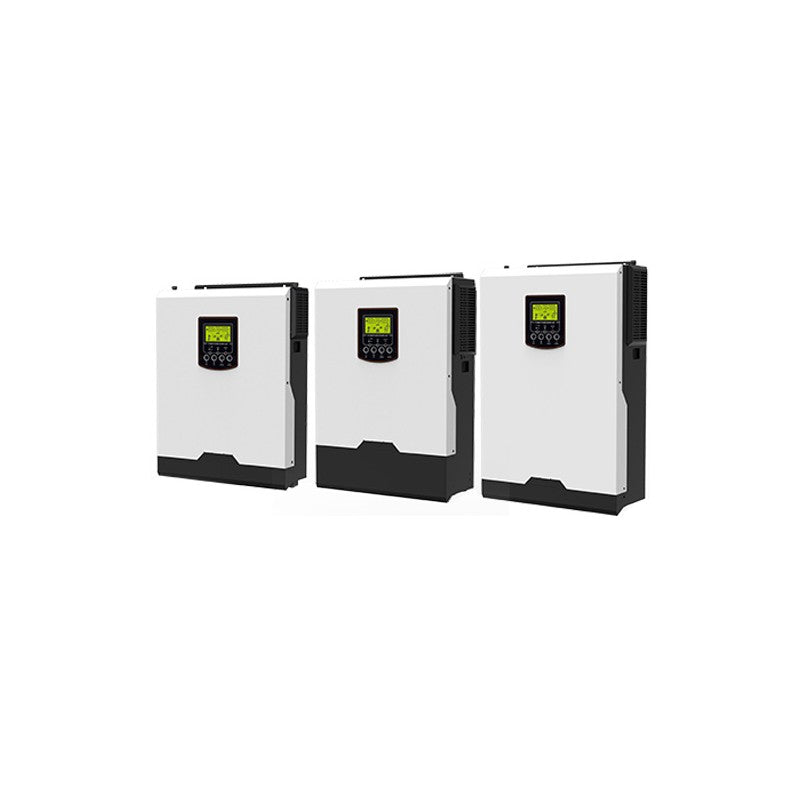

The Axpert VM II TWIN by Voltronic Power is a high-performance inverter designed to deliver reliable power with a voltage of 230 VAC and a surge power capacity of 12000VA. Its auto-sensing frequency feature ensures seamless operation across various applications. Ideal for personal computers and sensitive electronics, the Axpert VM II TWIN is perfect for home and office environments requiring stable and efficient power solutions.
Key Features
- Increased PV power to 8000W — Increased PV power to 5600W and 8000W based on model
- Maximum PV input current 40A
- Dual outputs, for smart load — Dual outputs, for smart load management
- Built-in WiFi for mobile monitoring — Built-in WiFi for mobile monitoring and OTA firmware upgrade
- Supports USB On-the-Go function
- Built-in BMS communication port
- Built-in meter calibration for optimized — Built-in meter calibration for optimized system operation
- Battery independent design
- Built-in anti-dust kit
Specifications
Electrical
| Voltage | 230 VAC |
| Selectable Voltage Range | 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 8000W |
| Maximum PV Input Current | 40A |
| MPP Range @ Operating Voltage | 60-450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
Mechanical
| Dimension, D x W x H (mm) | 122 x 322.7 x 420.3 |
| Net Weight (kgs) | 10.5 |
| Communication Interface | USB/RS232/RS485/Wi-Fi |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert VM II TWIN inverter?
The Axpert VM II TWIN inverter offers a peak efficiency of 93%, a surge power of 12000VA, and operates at a voltage of 230 VAC. It provides a pure sine wave output with an AC voltage regulation of 230VAC ± 5% in battery mode.
Is the Axpert VM II TWIN compatible with different battery types and solar panels?
Yes, the inverter is compatible with a 48 VDC battery system and supports solar panels with a maximum PV array power of 8000W. It features an MPPT solar charger with a maximum PV array open circuit voltage of 500 VDC.
What are the physical specifications of the Axpert VM II TWIN?
The physical dimensions and weight of the Axpert VM II TWIN are not specified in the provided details. Please refer to the product manual for exact measurements and weight.
What are the installation requirements for the Axpert VM II TWIN?
Installation requires a 230 VAC connection and a compatible battery system of 48 VDC. Ensure proper ventilation and adherence to safety standards during installation.
What warranty is offered with the Axpert VM II TWIN?
The warranty details for the Axpert VM II TWIN are not specified in the provided information. Please contact Voltronic Power or your distributor for warranty terms and conditions.
What certifications and standards does the Axpert VM II TWIN comply with?
The Axpert VM II TWIN complies with standard certifications, ensuring it meets industry standards for safety and performance. Specific certifications are not listed in the provided information.
What are the operating conditions for the Axpert VM II TWIN?
The specific operating temperature and humidity range are not detailed in the provided specifications. Generally, inverters should be operated in a cool, dry environment for optimal performance.
What are the key features and benefits of the Axpert VM II TWIN?
Key features include a high peak efficiency of 93%, pure sine wave output, and MPPT solar charging. These features ensure reliable performance and efficient energy conversion.
