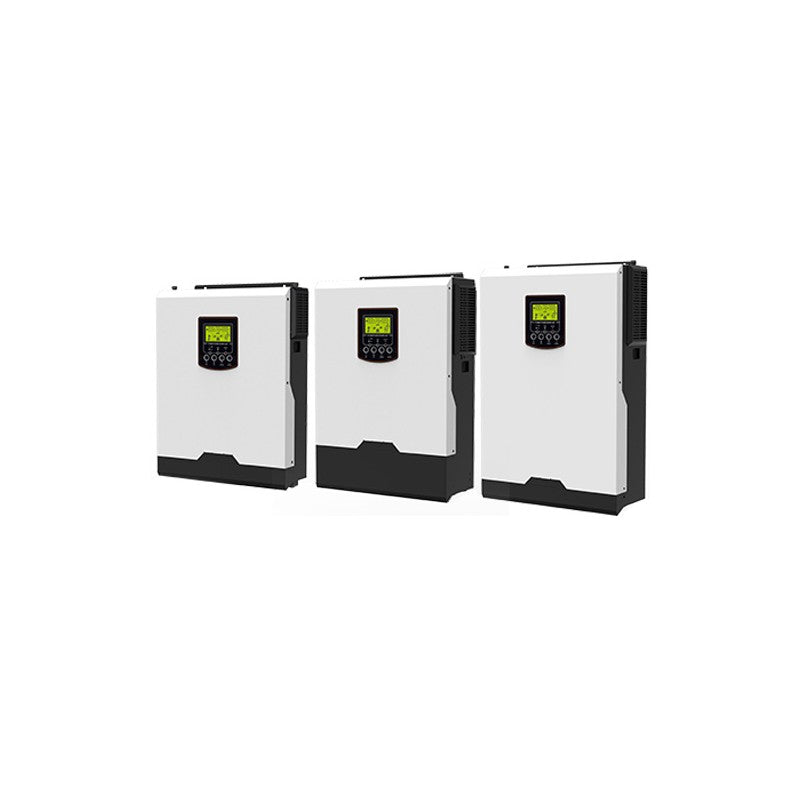

Voltronic Power Axpert VM II TWIN 3.6K
Voltronic Power Axpert VM II TWIN 3.6K
The Axpert VM II TWIN by Voltronic Power is a robust inverter designed to deliver reliable performance with a voltage of 230 VAC and a surge power of 7200VA. Its auto-sensing frequency range of 50/60 Hz ensures seamless integration with various power systems. Ideal for personal computers, home appliances, and small office setups, the Axpert VM II TWIN provides stable and efficient power conversion.
Key Features
- Dual outputs, for smart load — Dual outputs, for smart load management
- Maximum PV input current increases — Maximum PV input current increases to 27A
- Wide PV input voltage range — Wide PV input voltage range 60VDC ~ 450VDC
- Battery independent design
- Built-in 120A MPPT solar charger
- Battery equalization function to optimize — Battery equalization function to optimize battery performance and extend lifecycle
Specifications
Electrical
| Rated Power | 3600VA/3600W |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) |
| Waveform | Pure sine wave |
| Dual Outputs | Yes |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 5000W |
| Maximum PV Input Current | 27A |
| MPP Range @ Operating Voltage | 60-450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
Mechanical
| Dimension, D x W x H (mm) | 107 x 322.6 x 420.3 |
| Net Weight (kgs) | 9.5 |
| Communication Interface | USB/RS-232 |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert VM II TWIN?
The Axpert VM II TWIN inverter offers a peak efficiency of 93%, a surge power of 7200VA, and operates at a voltage of 230 VAC. It provides a pure sine wave output, ensuring compatibility with sensitive electronics.
Is the Axpert VM II TWIN compatible with different battery types and solar panels?
Yes, the inverter is compatible with a 24 VDC battery system and supports MPPT solar chargers with a maximum PV array power of 5000W and an open circuit voltage of up to 500 VDC.
What are the physical specifications of the Axpert VM II TWIN?
The specific dimensions and weight of the Axpert VM II TWIN are not provided in the key specifications. Please refer to the product manual or contact Voltronic Power for detailed physical specifications.
What are the installation requirements for the Axpert VM II TWIN?
Installation should be performed by a qualified technician. Ensure that the inverter is installed in a well-ventilated area, away from direct sunlight and moisture, and that all electrical connections comply with local regulations.
What warranty is provided with the Axpert VM II TWIN?
Voltronic Power typically offers a standard warranty for its products. For specific warranty terms and conditions, please refer to the warranty card provided with the product or contact the retailer.
What certifications and standards does the Axpert VM II TWIN comply with?
The Axpert VM II TWIN complies with standard certifications, ensuring it meets industry safety and performance standards. For detailed certification information, please refer to the product documentation.
What are the operating conditions for the Axpert VM II TWIN?
The inverter is designed to operate efficiently in a range of environmental conditions. However, specific temperature and humidity ranges are not provided in the key specifications. Please consult the product manual for detailed operating conditions.
What are the key features and benefits of the Axpert VM II TWIN?
Key features include dual outputs, a pure sine wave output, and an auto-sensing frequency range of 50 Hz/60 Hz. These features ensure compatibility with various devices and enhance the reliability of power supply.
