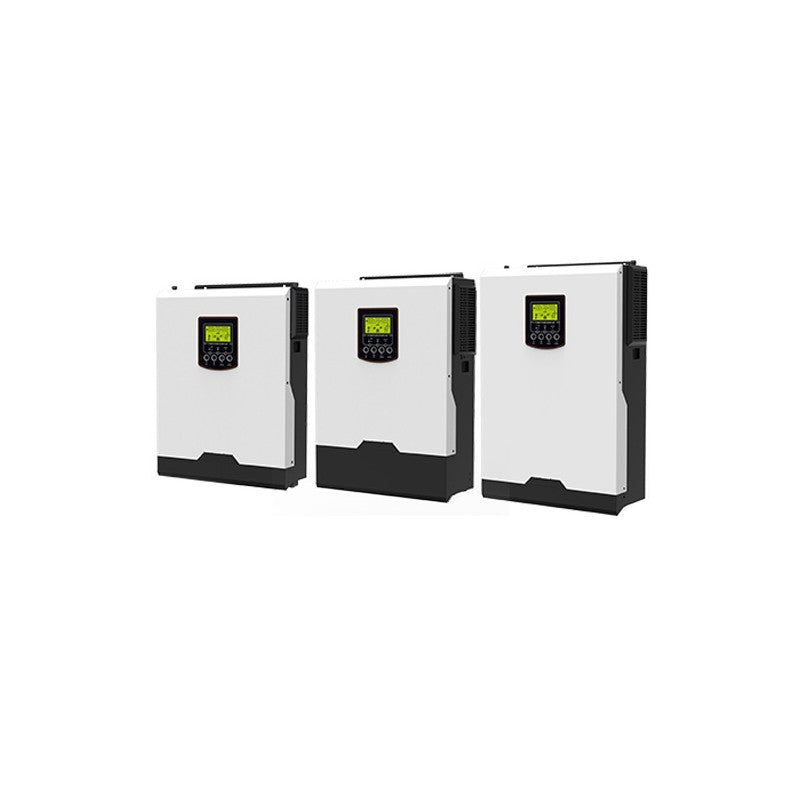

Voltronic Power Axpert VM II Elite 6K
Voltronic Power Axpert VM II Elite 6K
Introducing the Axpert VM II Elite, a high-performance inverter from Voltronic Power designed to meet your power needs with precision. Featuring a 230 VAC voltage and a robust 12000VA surge power, this inverter ensures reliable performance for both personal computers and home appliances. The Axpert VM II Elite is ideal for powering personal computers, home appliances, and other electronic devices, offering flexibility with its selectable voltage range and auto-sensing frequency.
Key Features
- Increased PV power to 8000W
- Dual inputs and dual outputs — Dual inputs and dual outputs for smart energy management
- Wide PV input voltage range — Wide PV input voltage range 60VDC–450VDC
- Built-in meter calibration for optimized — Built-in meter calibration for optimized system operation
- Maximum PV input current increases — Maximum PV input current increases to 27A
- Built-in BMS communication port
- Battery independent design
- Built-in WiFi with APP for — Built-in WiFi with APP for remote monitoring and OTA firmware upgrade
- Built-in Pre-charge circuit to reduce — Built-in Pre-charge circuit to reduce inrush current
- True battery reverse polarity protection
- Low noise and no load — Low noise and no load consumption
- External CT sensor to guarantee — External CT sensor to guarantee 100% self-consumption
- Parallel operation up to 2 — Parallel operation up to 2 units
- Metered 2nd output
Specifications
Electrical
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 8000W |
| Maximum PV Input Current | 27A |
| MPP Range @ Operating Voltage | 60-450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
Mechanical
| Dimension, D x W x H (mm) | 136 x 323.6 x 449.3 |
| Net Weight (kgs) | 10.3 |
| Communication Interface | RS232/RS485/CAN |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert VM II Elite?
The Axpert VM II Elite inverter offers a peak efficiency of 93% and a surge power of 12000VA. It operates at a voltage of 230 VAC with a selectable range of 170-280 VAC for personal computers and 90-280 VAC for home appliances.
Is the Axpert VM II Elite compatible with different battery types and solar panels?
Yes, the inverter is compatible with a 48 VDC battery system and supports MPPT solar chargers with a maximum PV array power of 8000W and an open circuit voltage of 500 VDC.
What are the physical specifications of the Axpert VM II Elite?
The physical dimensions and weight of the Axpert VM II Elite are not specified here. Please refer to the product manual or contact Voltronic Power for detailed specifications.
What are the installation requirements for the Axpert VM II Elite?
Installation should be performed by a qualified technician. Ensure proper ventilation and adherence to the specified voltage and current ratings for optimal performance.
What warranty information is available for the Axpert VM II Elite?
Warranty details for the Axpert VM II Elite can vary by region. It is recommended to check with your local distributor or the Voltronic Power website for specific warranty terms.
What certifications and standards does the Axpert VM II Elite comply with?
The Axpert VM II Elite complies with standard certifications, ensuring it meets industry safety and performance standards. Specific certifications are not listed here.
What are the operating conditions for the Axpert VM II Elite?
The inverter is designed to operate efficiently within a wide range of temperatures and humidity levels. For precise operating conditions, refer to the product manual.
What are the key features and benefits of the Axpert VM II Elite?
Key features include a pure sine wave output, auto-sensing frequency range of 50/60 Hz, and a robust MPPT solar charger. These features ensure high efficiency and compatibility with various appliances and solar setups.
