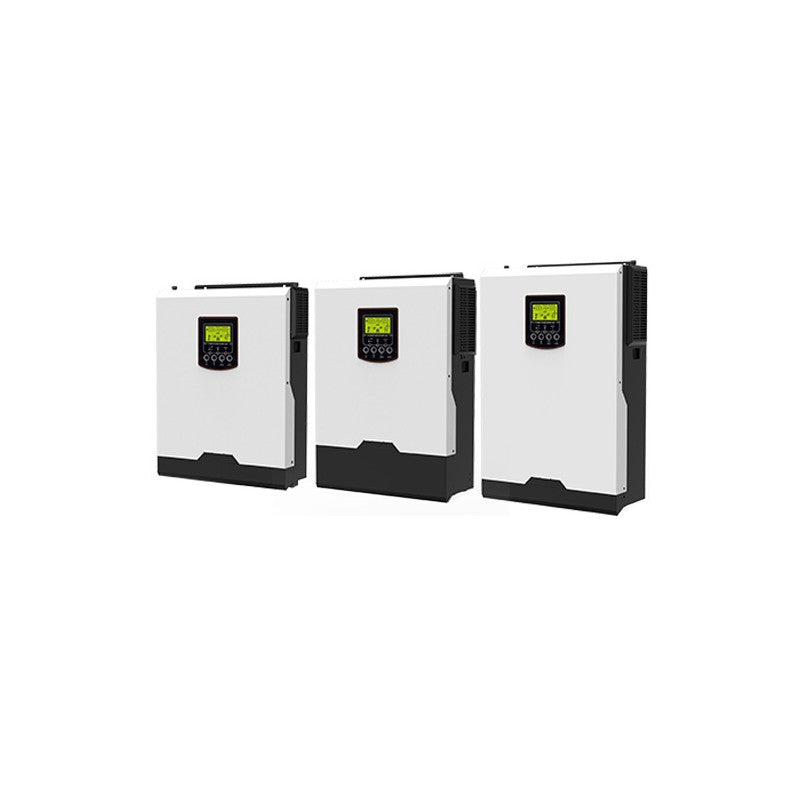

Voltronic Power Axpert VM 4 TWIN 4K
Voltronic Power Axpert VM 4 TWIN 4K
The Axpert VM 4 TWIN inverter by Voltronic Power is engineered to deliver robust performance with a rated power of 4000VA/4000W. Designed for efficiency, it offers an AC voltage regulation of 230VAC ± 10% in battery mode, making it ideal for various power applications. Perfect for residential and commercial use, the Axpert VM 4 TWIN inverter is suitable for powering home appliances, office equipment, and small industrial machines.
Key Features
- Dual output for smart load — Dual output for smart load management
- Maximum PV input current 27A
- Wide PV input voltage range — Wide PV input voltage range 60VDC~450VDC
- Customizable status LED ring with — Customizable status LED ring with RGB lights
- Touchable button with large 4.3” — Touchable button with large 4.3” colored LCD
- Built-in WiFi for mobile monitoring — Built-in WiFi for mobile monitoring (Android/iOS App available)
- Supports USB On-the-Go function
- Data log event stored in — Data log event stored in the inverter
- Reserved communication port (RS485, CAN-BUS — Reserved communication port (RS485, CAN-BUS or RS232) for BMS
- Battery independent design
- Battery equalization extends lifecycle
- Enhanced charging power
- Built-in anti-dust kit
Specifications
Electrical
| RATED POWER | 4000VA/4000W |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% |
| Surge Power | 8000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 5000W |
| MPP Range @ Operating Voltage | 60 – 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
Mechanical
| Dimension, D x W x H (mm) | 119 x 313.6 x 457.5 |
| Net Weight (kgs) | 10 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Environmental
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert VM 4 TWIN inverter?
The Axpert VM 4 TWIN inverter has a rated power of 4000VA/4000W with a surge power of 8000VA. It operates with an efficiency of 90% to 93% and maintains an AC voltage regulation of 230VAC ± 10% in battery mode.
Is the Axpert VM 4 TWIN compatible with all battery types and solar panels?
The inverter is designed for a battery voltage of 24 VDC and supports MPPT solar charging with a maximum PV array power of 5000W. It is compatible with a wide range of solar panels within an MPP range of 60 – 450 VDC.
What are the physical specifications of the Axpert VM 4 TWIN?
The physical dimensions and weight of the Axpert VM 4 TWIN are not specified here. Please refer to the product manual or contact Voltronic Power for detailed physical specifications.
What are the installation requirements for the Axpert VM 4 TWIN?
Installation of the Axpert VM 4 TWIN should be performed by a qualified technician. Ensure proper ventilation and follow the wiring guidelines as per the user manual to ensure optimal performance and safety.
What warranty is offered with the Axpert VM 4 TWIN?
Voltronic Power typically offers a standard warranty for their products. Please check with your supplier or the product documentation for specific warranty terms applicable to the Axpert VM 4 TWIN.
What certifications does the Axpert VM 4 TWIN have?
The Axpert VM 4 TWIN comes with standard certifications, ensuring compliance with industry standards for safety and performance. For detailed certification information, refer to the product documentation.
What are the operating conditions for the Axpert VM 4 TWIN?
The inverter is designed to operate efficiently under standard environmental conditions. Specific temperature and humidity ranges are not detailed here; please consult the product manual for precise operating conditions.
What are the key features and benefits of the Axpert VM 4 TWIN?
Key features of the Axpert VM 4 TWIN include its pure sine wave output, high surge power capacity, and efficient MPPT solar charging. These features ensure reliable power supply and optimal solar energy utilization.
