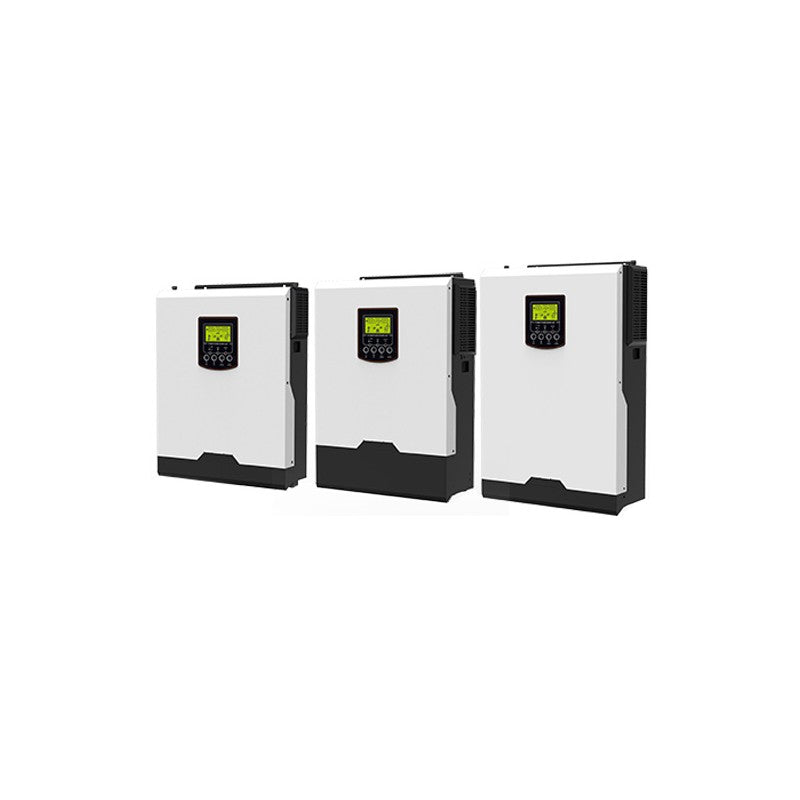

Voltronic Power Axpert Ultra
Voltronic Power Axpert Ultra
The Voltronic Power Axpert Ultra is a high-performance inverter designed to deliver reliable power with an impressive 8000VA/8000W capacity. Its precise AC voltage regulation ensures stable energy output, making it ideal for various applications. The Axpert Ultra is perfect for residential and commercial setups, offering robust power solutions for backup systems, solar installations, and off-grid applications.
Key Features
- Dual outputs for smart load — Dual outputs for smart load management
- Two independent AC power sources — Two independent AC power sources connected and switched automatically
- Built-in current transformer sensor to — Built-in current transformer sensor to meet self-consumption application
- Support external BTS (Battery Temperature — Support external BTS (Battery Temperature Sensor) detection
- Built-in power status lighting indicators
- Built-in 2.8” colored LCD with — Built-in 2.8” colored LCD with slide operation
- Built-in Wi-Fi for mobile monitoring — Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade
- Supports USB On-the-Go function
- Reserved communication port for BMS — Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Support optional GFCI, Rapid shutdown, — Support optional GFCI, Rapid shutdown, AFCI detections
- Parallel operation with 6 units
Specifications
Electrical
| Rated Power | 8000VA/8000W / 11000VA/11000W |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA / 22000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) / 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 10000W (5000W x 2) / 12000W (6000W x 2) |
| MPPT Range @ Operating Voltage | 90 – 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A x 2 (MAX 40A) |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact/BTS |
| Compliance Safety | CE |
Mechanical
| Dimension, D x W x H (mm) | 145 x 438 x 553.6 |
| Net Weight (kgs) | 18.4 |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Certifications: CE
FAQs
What are the main performance specifications of the Axpert Ultra inverter?
The Axpert Ultra inverter has a rated power of 8000VA/8000W, with a peak efficiency of 93%. It provides a pure sine wave output with an AC voltage regulation of 230VAC ± 5% in battery mode.
Is the Axpert Ultra compatible with different battery types and solar panels?
Yes, the Axpert Ultra is compatible with a 48 VDC battery system and supports MPPT solar charging with a maximum PV array power of 10000W, making it suitable for various solar panel configurations.
What are the physical specifications of the Axpert Ultra inverter?
The Axpert Ultra inverter's dimensions and weight are not specified here, but it is designed for robust performance. Please refer to the product manual for detailed physical specifications.
What are the installation requirements for the Axpert Ultra inverter?
The Axpert Ultra requires a proper installation environment with adequate ventilation and should be installed by a qualified professional to ensure optimal performance and safety.
What warranty does Voltronic Power offer for the Axpert Ultra?
Voltronic Power typically offers a standard warranty for its products, but specific warranty terms for the Axpert Ultra should be confirmed with the retailer or distributor.
What certifications does the Axpert Ultra inverter have?
The Axpert Ultra inverter is CE certified, ensuring it meets European safety, health, and environmental protection standards.
What are the operating conditions for the Axpert Ultra inverter?
The Axpert Ultra is designed to operate efficiently in a wide range of temperatures and humidity levels, but specific operating conditions should be checked in the product manual.
What are the key features and benefits of the Axpert Ultra inverter?
Key features of the Axpert Ultra include its high surge power of 16000VA, fast transfer time of 10 ms for personal computers, and advanced MPPT solar charging capabilities, making it highly efficient and reliable for various applications.
