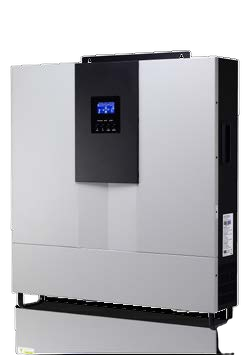

Voltronic Axpert MLV Axpert MLV 6KW Off-Grid Solar Inverter
Dhs. 1.00
The Axpert MLV Axpert MLV 6KW is a off-grid solar inverter rated Axpert MLV 6KW. Every figure on this page is read from the manufacturer's manual for the Axpert MLV series.
Specifications
Electrical
| Rated Power | 6000VA/6000W |
| Parallel Capability | Yes, 3 units |
| Rated Input Voltage | 110/120 VAC(L-N or L1-N-L2) |
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC(L-N or L1-N-L2) |
| Waveform | Pure sine wave |
| Maximum MPPT Charging Efficiency | 96% |
| Maximum AC Charging Efficiency | 92% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Floating Charge Voltage | 54 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Open Circuit Voltage | 145 VDC |
| Maximum PV Array Power | 4000 W x 2 |
| MPP Range @ Operating Voltage | 60 VDC 115 VDC |
| Maximum Solar Charge Current | 80 A x 2 |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 220 A |
Mechanical
| Dimension, D x W x H (mm) | 130 x 622.6 x 610 |
| Net Weight (kgs) | 30 |
Environmental
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
