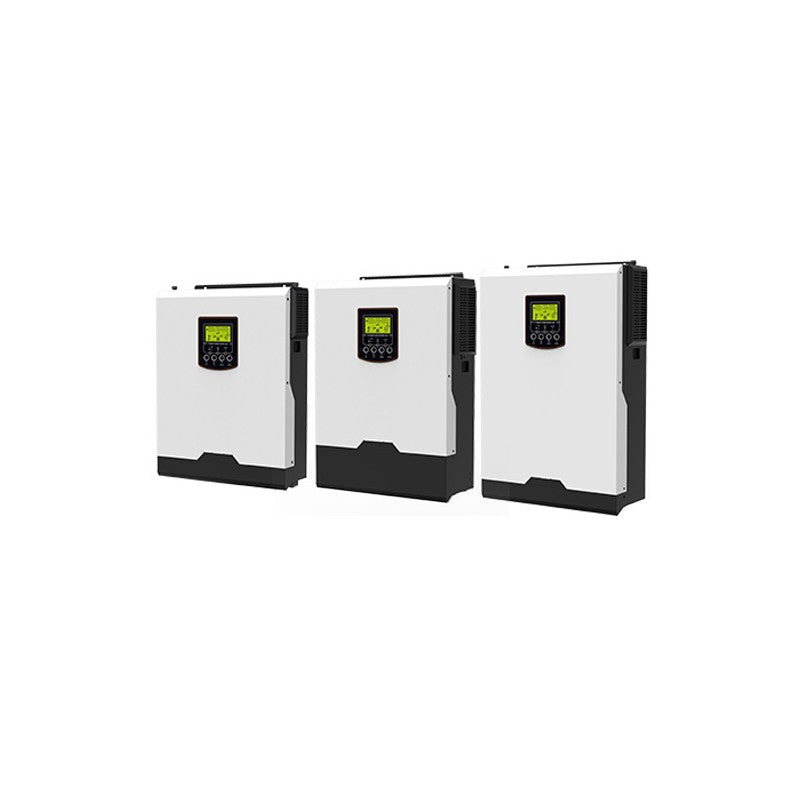

Voltronic Power Axpert MKS 4 TWIN 6K
Voltronic Power Axpert MKS 4 TWIN 6K
The Axpert MKS 4 TWIN 6K inverter by Voltronic Power is engineered for superior performance with a 230 VAC ± 5% voltage regulation. Its robust design ensures a peak efficiency of 93%, making it an ideal choice for reliable power management. This inverter is perfect for residential and commercial applications, providing stable power solutions for homes, offices, and small industrial setups.
Key Features
- Maximum PV input current 27A
- Dual outputs for smart load — Dual outputs for smart load management
- Customizable status LED ring with — Customizable status LED ring with RGB lights
- Touchable button with 4.3" colored — Touchable button with 4.3" colored LCD
- Wide DC input range
- Built-in Wi-Fi for mobile monitoring — Built-in Wi-Fi for mobile monitoring (App is available)
- Reserved communication port for BMS
- Battery independent function
- Parallel operation with up to — Parallel operation with up to 9 units
Specifications
Electrical
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Overload capacity | 5s@≤150% load; 10s@≤110%~≤150% load; 100ms @ ≤200% load |
| Efficiency (Peak) | 93 % |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 6000 W |
| MPPT Range @ Operating Voltage | 120 ~ 430 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27 A |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 120 A |
| Communication Interface | USB/RS232/RS485/Wifi/Dry-contact |
Mechanical
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12.0 |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
FAQs
What are the main performance specifications of the Axpert MKS 4 TWIN 6K?
The Axpert MKS 4 TWIN 6K inverter offers a peak efficiency of 93% and regulates AC voltage at 230 VAC ± 5% in battery mode. It supports an overload capacity of 5 seconds at ≤150% load and 100 milliseconds at ≤200% load.
Is the Axpert MKS 4 TWIN 6K compatible with all battery types?
The inverter is designed to work with a 48 VDC battery system. It is important to ensure that the battery type used is compatible with this voltage specification.
What are the physical specifications of the Axpert MKS 4 TWIN 6K?
The physical specifications, including dimensions and weight, are not specified in the provided details. Please refer to the product manual or contact Voltronic Power for precise information.
What are the installation requirements for the Axpert MKS 4 TWIN 6K?
Installation should be performed by a qualified technician. Ensure that the inverter is installed in a well-ventilated area and that all electrical connections comply with local regulations.
What warranty does the Axpert MKS 4 TWIN 6K come with?
Warranty information is not specified in the provided details. Please check with the retailer or Voltronic Power for warranty terms and conditions.
What certifications does the Axpert MKS 4 TWIN 6K have?
The Axpert MKS 4 TWIN 6K comes with standard certifications, ensuring compliance with industry standards. Specific certification details can be obtained from Voltronic Power.
What are the operating conditions for the Axpert MKS 4 TWIN 6K?
Operating conditions such as temperature and humidity are not specified. It is recommended to operate the inverter in a stable environment to ensure optimal performance.
What are the key features and benefits of the Axpert MKS 4 TWIN 6K?
Key features include a pure sine wave output, MPPT solar charger with a maximum PV array power of 6000 W, and a fast transfer time of 10 ms for personal computers. These features ensure efficient and reliable power conversion.
