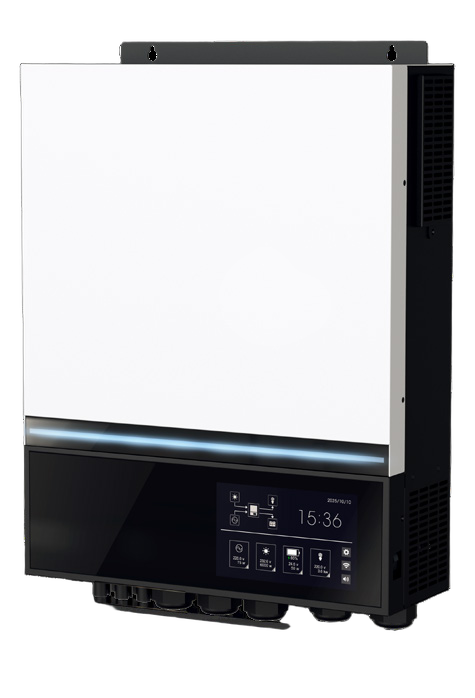

Voltronic Axpert MAX TWIN HMI LV Axpert MAX TWIN HMI 6500 Off-Grid Solar Inverter
Dhs. 1.00
Skip to product information
Voltronic Axpert MAX TWIN HMI LV Axpert MAX TWIN HMI 6500 Off-Grid Solar Inverter
Dhs. 1.00
The Axpert MAX TWIN HMI LV Axpert MAX TWIN HMI 6500 is a off-grid solar inverter rated Axpert MAX TWIN HMI 6500. Every figure on this page is read from the manufacturer's manual for the Axpert MAX TWIN HMI LV series.
Specifications
Electrical
| Rated Power | 6500VA/6500W |
| Parallel Capability | Yes, 12 units |
| Selectable Voltage Range | 90-140 VAC (For Computers) |
| AC Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| No Load Power Consumption | <70W |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Maximum PV Input Current | 18A x 2 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Safety | UL 1741:2010 R6.21; CSA C22.2 No. 107.1-16 EMC FCC PART15 Class A |
Mechanical
| Net Weight (kgs) | 18.4 |
Environmental
| Humidity | 5% to 95% |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
