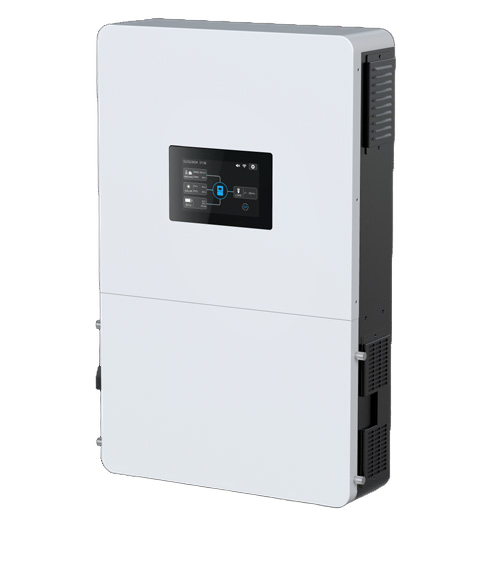

Voltronic Axpert MAX IND LV Axpert MAX IND 6600 Off-Grid Solar Inverter
Dhs. 1.00
Skip to product information
Voltronic Axpert MAX IND LV Axpert MAX IND 6600 Off-Grid Solar Inverter
Dhs. 1.00
The Axpert MAX IND LV Axpert MAX IND 6600 is a off-grid solar inverter rated Axpert MAX IND 6600. Every figure on this page is read from the manufacturer's manual for the Axpert MAX IND LV series.
Specifications
Electrical
| Rated Power | 6600VA/6600W |
| Parallel Capability | YES, 6 units |
| Selectable Voltage Range | 90-140 VAC (For Computers) |
| AC Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Surge Power | 13200VA |
| Efficiency (Peak) | 92% |
| No Load Power Consumption | <75W |
| Maximum PV Array Power | 15000W (7500W x 2) |
| MPPT Range @ Operating Voltage | 90-450 VDC |
| Maximum PV Input Current | 27A x 2 (Max. 45A) |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Ingress Protection Rating | IP54 |
| Compliance Safety | UL1741, UL458 |
Environmental
| Humidity | 5% to 95% |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
