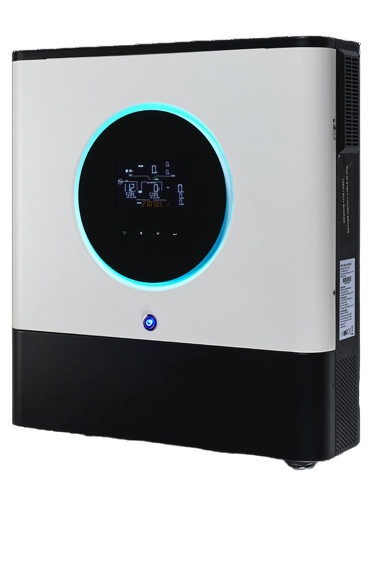

Voltronic Axpert MAX II Duplex S Axpert Max II Duplex S 8K Hybrid Solar Inverter
Dhs. 1.00
Skip to product information
Voltronic Axpert MAX II Duplex S Axpert Max II Duplex S 8K Hybrid Solar Inverter
Dhs. 1.00
The Axpert MAX II Duplex S Axpert Max II Duplex S 8K is a hybrid solar inverter rated Axpert Max II Duplex S 8K. Every figure on this page is read from the manufacturer's manual for the Axpert MAX II Duplex S series.
Specifications
Electrical
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Maximum PV Input Current | 27A x 2 (MAX 40A) |
| Maxmum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| Compliance Safety | CE, NRS 097-2-1:2017 |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| DC Voltage | 12 VDC ±5%, 100W |
| Floating Charge Voltage | 54 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
Mechanical
| Dimension, D x W x H (mm) | 147.4x 432.5 x 553.6 |
| Net Weight (kgs) | 18.4 |
Environmental
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
