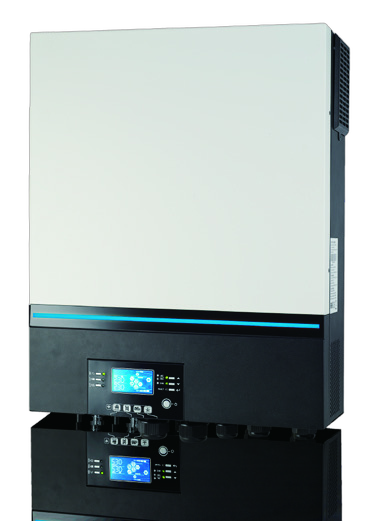

Voltronic Axpert MAX E TWIN Axpert MAX E TWIN-11000 Off-Grid Solar Inverter
Dhs. 1.00
Skip to product information
Voltronic Axpert MAX E TWIN Axpert MAX E TWIN-11000 Off-Grid Solar Inverter
Dhs. 1.00
The Axpert MAX E TWIN Axpert MAX E TWIN-11000 is a off-grid solar inverter rated Axpert MAX E TWIN-11000. Every figure on this page is read from the manufacturer's manual for the Axpert MAX E TWIN series.
Specifications
Electrical
| Rated Power | 11000VA/11000W |
| Parallel Capability | YES, 6 units |
| Selectable Voltage Range | 170-280 VAC (For Computers) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ±5% |
| Surge Power | 22000VA |
| Efficiency (Peak) | 93% |
| No Load Power Consumption | <70W |
| Dual Outputs | Yes |
| Maximum PV Array Power | 11000W |
| MPPT Range @ Operating Voltage | 90~450 VDC |
| Maxmum Solar Charge Current | 150A |
| Maximum AC Charge Current | 150A |
| Maximum Charge Current | 150A |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Mechanical
| Net Weight (kgs) | 18.4 |
Environmental
| Humidity | 5% to 95% |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
