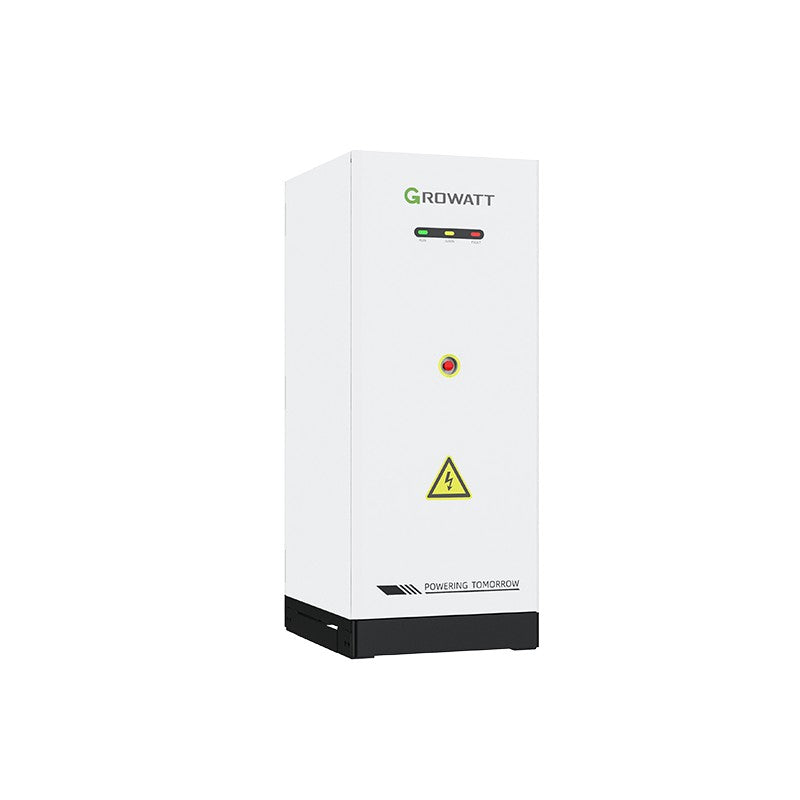

Growatt AXE 60.0H-1HR-E1
Growatt AXE 60.0H-1HR-E1
Growatt — the world's #1 residential solar inverter brand by Wood Mackenzie. The AXE 60.0H-1HR-E1 is a cobalt-free LiFePO4 battery (residential or commercial cabinet). Designed for C&I sites with WIT inverters — schools, mosques, mid-size factories. Key features: indoor or outdoor IP-rated, fire-suppression-ready cabinet. 10-year warranty. Available in 17 regions across the Middle East, Europe, and Africa via Growatt MJS Solutions, the authorised distributor based in Dubai. Remote monitoring via the ShinePhone app and ShineServer cloud — view performance from anywhere, configure alerts, and manage multiple sites.
Key Features
- Adopt high-safety LFP battery
- Battery pack modular design, support 30~60kWh flexible expansion
- Support 1C continuous charge and discharge
- Battery pack compatible with 19-inch cabinet installation
- Easy installation and maintenance
- Support multi-rack parallel operation
Specifications
Electrical
| Control Module | AXE 1000100-C1 |
| Number of Modules in Series | 12 |
| Energy Capacity | 60kWh |
| Usable Capacity | 54kWh |
| Rated Output Power | 60kW |
| Max. Output Power | 60kW |
| Dimension (W/H/D) | 570/1560/660mm / 570/1964/660mm |
| Weight | ≤0.69t |
| Nominal Voltage | 614.4V |
| Operating Voltage Range | 556.8~681.6V |
| Nominal Capacity | 100Ah@25°C |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Ingress Protection | IP20 |
| Installation | Floor stand |
| Operating Temperature | -10~50°C |
| Relative Humidity | 5%~95% |
| Cooling | Air-Cooling |
| Noise Emission | <60dB |
| Maximum Elevation | ≤2000m |
| Communication Port | CAN/RS485/USB |
| Operating Voltage Range | 556.8~681.6V |
| Maximum Current | 100A |
| Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature |
FAQs
Is the Growatt AXE 60.0H-1HR-E1 approved for use in the UAE?
Yes — Growatt inverters are widely used in DEWA Shams Dubai, SEWA, FEWA, EtihadWE, and SEC Saudi Arabia installations. Verify the specific SKU on the latest DEWA Approved Equipment List before EPC submission. Growatt MJS Solutions can supply DEWA documentation on request.
What warranty comes with the Growatt AXE 60.0H-1HR-E1, and is it valid in the Middle East?
5-Year Manufacturer Warranty, valid across all 17 regions we serve including UAE, KSA, Oman, Bahrain, Qatar, Kuwait, Egypt, and the wider Middle East/North Africa. Extended warranty options are available at the time of purchase. All warranty claims are processed locally through Growatt MJS Solutions in Dubai.
How do I monitor the Growatt AXE 60.0H-1HR-E1 remotely?
All Growatt inverters and batteries integrate with the ShinePhone mobile app and ShineServer cloud platform. Add a ShineWiFi-X dongle or use the built-in WiFi (depending on model) for real-time monitoring, alerts, and multi-site management. The app supports English, Arabic, and 20+ languages.
Can I install the Growatt AXE 60.0H-1HR-E1 on a three-phase commercial site?
Yes — AXE 60.0H-1HR-E1 is designed for three-phase 400V grid connections common in UAE/KSA commercial buildings. It supports parallel installation for larger arrays, smart string monitoring, and integrates with EMS/SCADA via RS485/Ethernet. Suitable for warehouses, schools, mosques, and light-industrial rooftops.
What's the lead time for the Growatt AXE 60.0H-1HR-E1 in Dubai?
In-stock units typically ship within 1–2 business days from our Dubai warehouse. For larger orders or specific configurations, lead times of 2–4 weeks may apply. Contact Growatt MJS Solutions on +971 4 255 0887 or sales@growatinverter.com for an exact quote.
Is the Growatt AXE 60.0H-1HR-E1 a LiFePO4 battery, and how does it compare to lead-acid?
Yes — all Growatt batteries use cobalt-free LiFePO4 (LFP) chemistry. Compared to lead-acid: LFP delivers 6,000+ cycles vs. 500–1,500 for lead-acid, 90%+ depth of discharge vs. 50%, faster charging, no maintenance, and longer service life — typically lower total cost of ownership over 10 years despite higher upfront cost.
